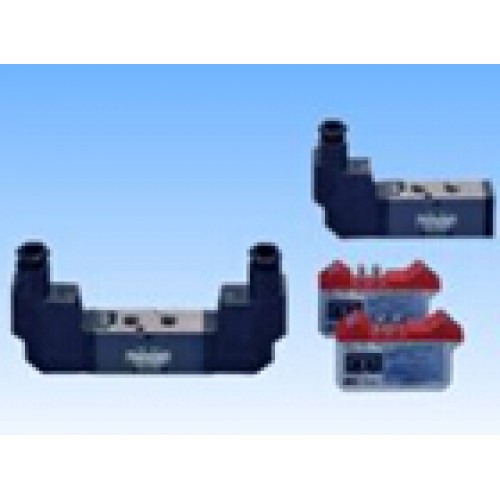

Intrinsic safety valves can be used for applications that require similar explosion class/ignition degree to d2G4 or Exd II BT5 type (explosion-proof enclosure construction). Without need for expensive connection tools and complex installation work that are inevitable for explosion-proof enclosure types, the intrinsic safety valves achieve highly reliable explosion-proof performance.
 |
| |
Return |
Hold |
| Kind of barrier to combine |
ｉ２Ｇ４ |
MTL728+ |
454S202C-Ｙｉ |
454S203C-Ｙｉ |
454S403C-Ｙｉ |
454S404C-Ｙｉ |
454D202C-Ｙｉ |
454D203C-Ｙｉ |
454D403C-Ｙｉ |
454D404C-Ｙｉ |
| EｘｉａⅡBT5 |
SAF3-5 |
454S202M-Ｙｉ |
454S203M-Ｙｉ |
454S403M-Ｙｉ |
454S404M-Ｙｉ |
454D202M-Ｙｉ |
454D203M-Ｙｉ |
454D403M-Ｙｉ |
454D404M-Ｙｉ |
| In the case of other explosion-proof barriers and combination *1 |
| Structure of the main valve |
Pilot spool type
|
| Port size |
Rc1/4 |
Rc3/8 |
Rc1/2 |
Rc1/4 |
Rc3/8 |
Rc1/2 |
| Effective area of valve |
22mm2 |
40mm2 |
22mm2 |
40mm2 |
| Working pressure |
0.2～0.7MPa |
| Ambient temp. |
-5～50℃ |
| Explosion-proof standard |
Intrinsic safety construction |
| Operating condition |
1. Use with specified safety barrier.
For i2G4 explosion-proof valves, use them with MTL728+ safety barrier.
For Exia II BT5 explosion-proof valves, use them with the safety barrier SAF3-5 or that meets the
conditions described below (note *1).
2. Parts and connections cannot be changed.
3. Use 1 explosion-proof barrier for each solenoid valve.
|
|
