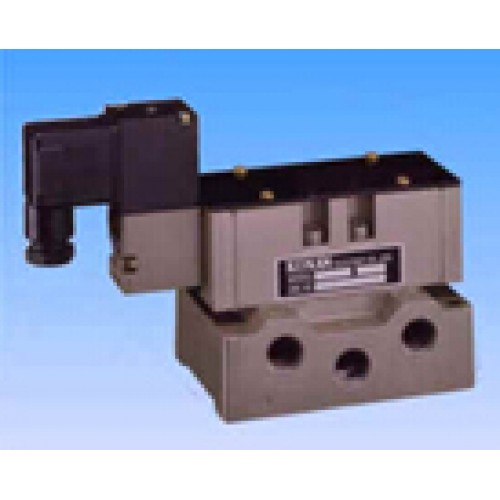

Konan MAGSTARⅢ 413 series 5-port solenoid valves spool valve

Sub-plate type solenoid valve focusing safety in operation and easy maintenance.

Employing sizes complying with ISO and JIS standards, this valve is suitable for multiple applications

With standardized collective exhaust type manifold and sizes complying with ISO and JIS standards, the valve is designed to enhance functionability

Return	413S302C	413S303C	413S603C	413S604C	413S804C	413S806C
Hold	413D302C	413D303C	413D603C	413D604C	413D804C	413D806C
Closed center	413H302C	413H303C	413H603C	413H604C	413H804C	413H806C
Center open to exhaust	413J302C	413J303C	413J603C	413J604C	413J804C	413J806C
Center open to pressure	413I302C	413I303C	413I603C	413I604C	413I804C	413I806C
Port size		Rc1/4	Rc3/8		Rc1/2		Rc3/4
Effective area of valve		25ｍｍ²	28ｍｍ²	55ｍｍ²	60ｍｍ²	70ｍｍ²	80ｍｍ²
Working pressure		0.2～0.8MPa
Ambient temp.		-5～50℃
Solenoid	Rated voltage	AC100V,110V,200V,220V(50/60Hz) DC24V,48V,100V,110V,125V
	Temperature rise	≦70℃
	Insulation class	JIS C4003 Class B
	Power consumption	AC:6VA DC:5W
Response time		≦0.03 s		≦0.06 s		≦0.1 s
Operating frequency		Max. 4/s Min. 1/month
Applicable cylinder size (reference)		φ80～160		φ140～220		φ160～250
