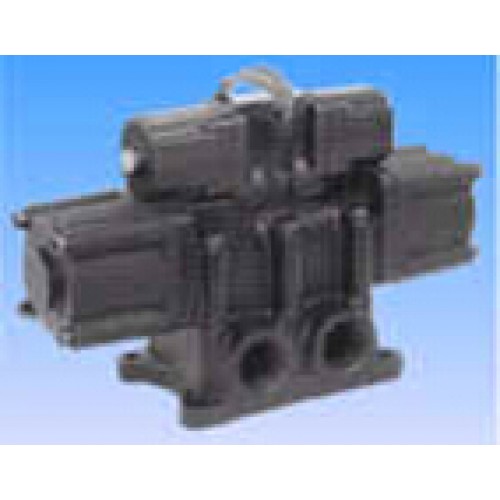

Konan 4-port Solenoid Valves for Heavy-Duty Spool valve MVPE1
Heavy duty type solenoid valve with reliable functions suitable for severe operating conditions.
Solenoid with strong suction power
Pilot valve resistant to contaminated air
Highly reliable control mechanism
|
Model code |
Closed center |
MVPC1 |
MVPC2 |
||||
|
Center open to exhaust |
MVPO1 |
MVPO2 |
|||||
|
Center open to pressure |
MVPE1 |
MVPE2 |
|||||
|
Port size |
Rc3/8 |
Rc1/2 |
Rc3/4 |
Rc1 |
Rc1 1/4 |
Rc1 1/2 |
|
|
10A |
15A |
20A |
25A |
32A |
40A |
||
|
Working pressure |
0.12～0.7MPa |
||||||
|
Ambient temp. |
-20～50℃ |
||||||
|
Effective area of valve |
35mm 2 |
60mm 2 |
140mm 2 |
180mm 2 |
250mm 2 |
350mm 2 |
|
|
Rated voltage |
AC100,110,200,220V(50/60Hz) DC24,48,100,110,200,220V |
||||||
