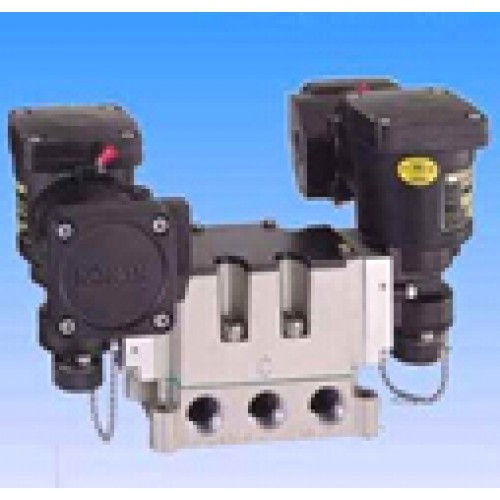

Konan Explosion-Proof Drip-Proof 5-port Solenoid Valves MVPCF(N)/MVPEF(N)/MVPOF(N) series Spool valve
| Closed center | Center open to pressure | Center open to exhaust | Closed center | Center open to pressure | Center open to exhaust | |||
| Model code | Drip-Proof type | MVPCF-03-E3K | MVPEF-03-E3K | MVPOF-03-E3K | MVPCN-08-E3K | MVPEN-08-E3K | MVPON-08-E3K | |
| Explosion-Proof type | Pressure-resistant packing system | MVPCF-03-E2K | MVPEF-03-E2K | MVPOF-03-E2K | MVPCN-08-E2K | MVPEN-08-E2K | MVPON-08-E2K | |
| Metal conduit system | MVPCF-03-E1K | MVPEF-03-E1K | MVPOF-03-E1K | MVPCN-08-E1K | MVPEN-08-E1K | MVPON-08-E1K | ||
| Structure of the main valve | Pilot-acting spool valve | |||||||
| Port size | Rc1/4・Rc3/8・Rc1/2 | Rc3/4・Rc 1 | ||||||
| Effective area of valve | 40mm2(2.2)・55mm2(3.0)・70mm2(3.8) | 175mm2(9.5)・185mm2(10.0) | ||||||
| Working pressure | 0.2～0.7MPa | 0.12～0.7MPa | ||||||
| Ambient temp. | -5～60℃ | -20～50℃ | ||||||
| Explosion-proof standard | d2G4 | |||||||
