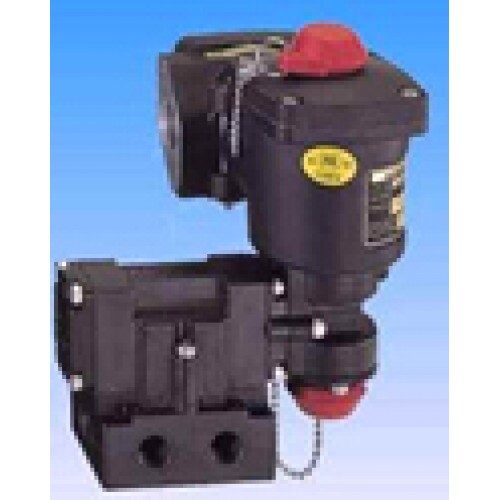

Konan Explosion-Proof Drip-Proof 4-port Solenoid Valves MVS800K/MVD800K series Ceramic slide valve
| Return | Hold | |||||||||
| Model code | Drip-Proof type | MVS811K-02 | MVS801K-03 | MVD811K-02 | MVD801K-03 | |||||
| Explosion-Proof type | Pressure-resistant packing system | MVS812K-02 | MVS802K-03 | MVD812K-02 | MVD802K-03 | |||||
| Metal conduit system | MVS813K-02 | MVS803K-03 | MVD813K-02 | MVD803K-03 | ||||||
| Structure of the main valve | Ceramic slide valve Pilot-acting | |||||||||
| Port size | Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | Rc1/4 | Rc3/8 | Rc3/8 | Rc1/2 | ||
| Effective area of valve | 16mm2
(0.9) |
18mm2
(1.0) |
55mm2
(3.0) |
60mm2 (3.3) |
16mm2
(0.9) |
18mm2
(1.0) |
55mm2 (3.0) |
60mm2
(3.3) |
||
| Working pressure | 0.12～0.7MPa | |||||||||
| Ambient temp. | -20～60℃ | |||||||||
| Explosion-proof standard | d2G4 | |||||||||
