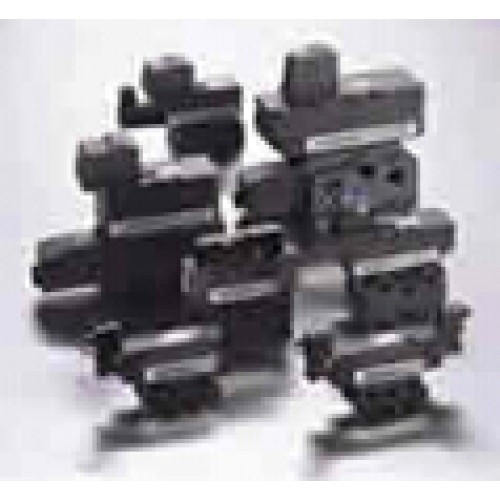

Konan New MAGSTAR 5-port Solenoid Valves Gasket-connected type 414 series Spool valves
The main valve is the spool valve, which employs a unique soft seal I-ring for spool packing made of self-lubricating material.
This has remarkable improved operation reliability.
| Model code | Return | 414S201C | 414S202C | 414S302C | 414S303C | 414S603C | 414S604C | 414SA14C | 414SA16C | 414SA96C | 414SA91C |
| Hold | 414D201C | 414D202C | 414D302C | 414D303C | 414D603C | 414D604C | 414DA14C | 414DA16C | 414DA96C | 414DA91C | |
| Closed center | 414H201C | 414H202C | 414H302C | 414H303C | 414H603C | 414H604C | 414HA14C | 414HA16C | 414HA96C | 414HA91C | |
| Center open to pressure | 414I201C | 414I202C | 414I302C | 414I303C | 414I603C | 414I604C | 414IA14C | 414IA16C | 414IA96C | 414IA91C | |
| Center open to exhaust | 414J201C | 414J202C | 414J302C | 414J303C | 414J603C | 414J604C | 414JA14C | 414JA16C | 414JA96C | 414JA91C | |
| Nominal size of main valve | B20 | B30 | B60 | B110 | B190 | ||||||
| Port size | Rc1/8 | Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc 1 | |||||
| Effective area of valve | 16mm2 | 20mm2 | 25mm2 | 30mm2 | 51mm2 | 60mm2 | 94mm2 | 110mm2 | 160mm2 | 190mm2 | |
| Working pressure | 0.2～1.0MPa | ||||||||||
| Ambient temp. | -5～50℃ | ||||||||||
