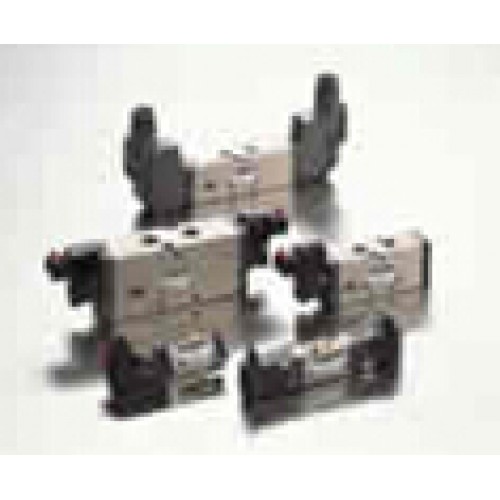

Konan New MAGSTAR 5-port Solenoid Valves Direct piping type 454 series Spool valves
A simple spool valve is arranged in a small width rectangular body.
This has made a compact valve small yet capable of large flow rate
| Model code | Return | 454S04FC | 454S04MC | 454S091C | 454S202C | 454S203C | 454S403C | 454S404C |
| Hold | 454D04FC | 454D04MC | 454D091C | 454D202C | 454D203C | 454D403C | 454D404C | |
| Closed center | 454H04FC | 454H04MC | 454H091C | 454H202C | 454H203C | 454H403C | 454H404C | |
| Center open to pressure | 454I04FC | 454I04MC | 454I091C | 454I202C | 454I203C | 454I403C | 454I404C | |
| Center open to exhaust | 454J04FC | 454J04MC | 454J091C | 454J202C | 454J203C | 454J403C | 454J404C | |
| Nominal size of main valve | B04 | B09 | B20 | B40 | ||||
| Port size | 4mm | M5 | RC1/8 | RC1/4 | Rc3/8 | Rc1/2 | ||
| Effective area of valve | 4mm2 | 9mm2 | 22mm2 | 40mm2 | ||||
| Working pressure | 0.2～1.0MPa | |||||||
| Ambient temp. | -5～50℃ | |||||||
