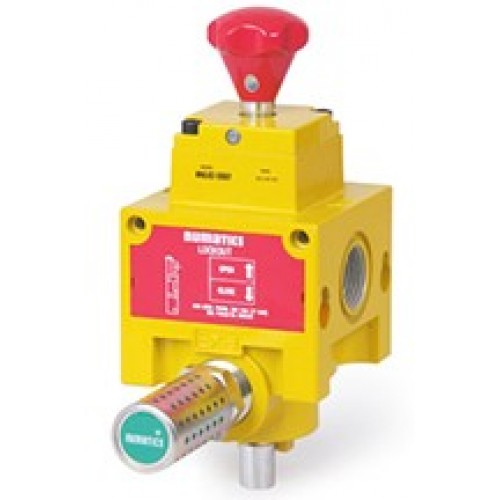

Numatics solenoid valve Lockout and Shut off Valves VL42 Standard Series / VT42 Slo-Start Feature
Numatics lockout valves prevent unauthorized pressurization of an air system during service or maintenance. Numatics lockout valves employ a unique, one piece center spool design that accommodates a user-supplied padlock in the closed position. When locked in the closed position, the pneumatic system controlled by the lockout valve cannot be operated until the padlock is removed.
Numatics lockout valves are available in several different designs including Manual, Slo-Start and Modular. Each lockout valve is equipped with an emergency shut off feature that quickly exhausts downstream pressure to atmosphere.
The optional Slo-Start Valve feature gives an operator the ability to turn the spool’s red knob in the CCW direction gradually increasing downstream pressure, before opening to full flow conditions.
Inline Manual Lockout Valve VL42 and VT42 Specifications Include:
- Cv: In – Out = 11.5 to 12.5
- Port Sizes: 3/4, 1, NPTF & G Tap (BSPP)
- Temperature Range: 40° F to 120°F (4.4°C to 46.9°C)
- Maximum Pressure: 250 PSIG (17 bar) - (applies to 42 series only)
- Flow Media: filtered air
- Weight: VL42 Series: 4.95 lbs. (2.25 kg) / VT42 Series: 5.50 lbs. (2.50 kg)
Inline Manual Lockout Valve VL42 and VT42 Features Include:
- Emergency shut off – Full flow quick exhaust of downstream pressure
- Meets OSHA specifications
- NEW “U Coating” process helps provide low-friction startup
- Bright yellow body with red knob is easily identified as a lockout device
- Integrated hole in valve spool for Scissor “Trades” lock
- Sturdy, durable, long lasting construction
- Detented spool
- Integral mounting holes - Surface mountable
- Slo – Start feature allows operator to turn spool’s red knob in the CCW direction gradually increasing downstream pressure, before opening to full flow conditions
