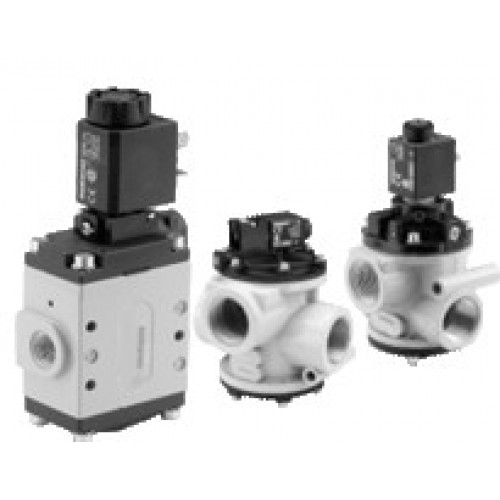

Numatics solenoid NG Series Vacuum Poppet Valve - Solenoid Pilot Actuated

For compressed air and vacuum, the Numatics poppet valves are ideal for single acting cylinders, air bellows, and vacuum material handling.

Standard Specifications:

• Cv: 1.8 to 24
• Port Sizes: 1/4, 3/8, 1/2, 3/4, 1, 1 1/2 inch
• Operating Vacuum Range: 5.9" to 29.9" of Hg. / 150 to 759.5 mm of Hg
• Temperature Range (Ambient): 23°F to +122°F / -5°C to +50°C
• Coil Type: U2 Series Coil

Features:

• Solenoid pilot actuated
• 3-way design
• Use with air or neutral gas
• Internal vacuum pilot operated
• AC & DC voltages available
• Cad drawings available
• High flow
• Rugged design
• Bubble tight
• Low cost
• CSA and CE approved
