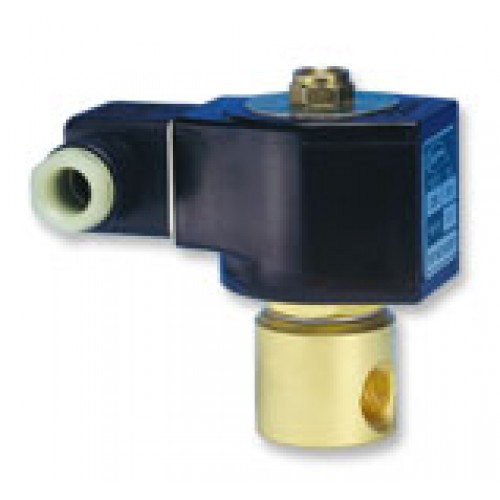

Jefferson solenoid valve 1327 Series 2-Way Solenoid Valves Item # 1327BA122T-120VAC
Features
- Normally closed and normally open
- Direct acting. No minimum differential pressure to operate
- Brass, iron, and stainless steel body.Applications
- Instrumentation. Laboratory
- Burner pilot for gas and oil
- Welding equipment. Humidifiers
| Specifications |
Series |
 |
1327 |
|
||
Valve Type |
|
Normally Closed |
|
||
Body Material |
|
Brass |
|
||
Port Size |
|
1/4 in |
|
||
Port Type |
|
Female NPT |
|
||
Operating Pressure |
|
0-1050 psig 0-70 bar |
|
||
Max. Temperature |
|
176 ºF 80 ºC |
|
||
Flow Coefficient (Cv) |
|
0.06 |
|
||
Orifice Size |
|
.049 in 1.25 mm |
|
||
Seat Material |
|
Buna N |
|
||
Voltage |
|
120 VAC |
|
||
Coil Type |
|
MF13C |
|
||
Coil VA Inrush Amperage |
|
45 |
|
||
Coil VA Holding Amperage |
|
27 |
|
||
Options (Prefix) |
|
Y - Weather proof housing. YC - Water, weather and saline corrosion proof coils. Z - Explosion and weather proof housing. ZC - Explosion and weather proof coils. |
|
||
Dim. B |
|
2.24 in 57 mm |
|
||
Dim. C |
|
.87 in 22 mm |
|
||
Dim. D |
|
.39 in 10 mm |
|
||
Dim. E |
|
3.35 in 85 mm |
|
||
Dim. F |
|
1.06 in 27 mm |
|
||
Dim. G |
|
.79 in 20 mm |
|
||
Dim. NC |
|
3.15 in 80 mm |
|
||
Weight |
|
1.1 lbs |
Item # Valve Type Body Material Port Size Operating Pressure Max. Temperature Orifice Size Seat Material Voltage
1327BA122T-120VAC Normally Closed Brass 1/4 in 0-1050 psig 176 ºF .049 in Buna N 120 VAC
0-70 bar 80 ºC 1.25 mm
1327BN122T-120VAC Normally Closed Brass 1/4 in 0-1050 psig 176 ºF .049 in Neoprene 120 VAC
0-70 bar 80 ºC 1.25 mm
1327BE122T-120VAC Normally Closed Brass 1/4 in 0-1050 psig 302 ºF .049 in EPDM 120 VAC
0-70 bar 150 ºC 1.25 mm
1327BV122T-120VAC Normally Closed Brass 1/4 in 0-1050 psig 302 ºF .049 in FKM 120 VAC
0-70 bar 180 ºC 1.25 mm
1327BT122T-120VAC Normally Closed Brass 1/4 in 0-1050 psig 356 ºF .049 in PTFE 120 VAC
0-70 bar 180 ºC 1.25 mm
1327BA172T-120VAC Normally Closed Brass 1/4 in 0-525 psig 176 ºF 0.068 in Buna N 120 VAC
0-35 bar 80 ºC 1.75 mm
1327BN172T-120VAC Normally Closed Brass 1/4 in 0-525 psig 176 ºF 0.068 in Neoprene 120 VAC
0-35 bar 80 ºC 1.75 mm
1327BE172T-120VAC Normally Closed Brass 1/4 in 0-525 psig 302 ºF 0.068 in EPDM 120 VAC
0-35 bar 150 ºC 1.75 mm
1327BV172T-120VAC Normally Closed Brass 1/4 in 0-525 psig 302 ºF 0.068 in FKM 120 VAC
0-35 bar 180 ºC 1.75 mm
1327BT172T-120VAC Normally Closed Brass 1/4 in 0-525 psig 356 ºF 0.068 in PTFE 120 VAC
0-35 bar 180 ºC 1.75 mm
1327BA222T-120VAC Normally Closed Brass 1/4 in 0-300 psig 176 ºF 0.088 in Buna N 120 VAC
0-20 bar 80 ºC 2.25 mm
1327BN222T-120VAC Normally Closed Brass 1/4 in 0-300 psig 176 ºF 0.088 in Neoprene 120 VAC
0-20 bar 80 ºC 2.25 mm
1327BE222T-120VAC Normally Closed Brass 1/4 in 0-300 psig 302 ºF 0.088 in EPDM 120 VAC
0-20 bar 150 ºC 2.25 mm
1327BV222T-120VAC Normally Closed Brass 1/4 in 0-300 psig 302 ºF 0.088 in FKM 120 VAC
0-20 bar 180 ºC 2.25 mm
1327BT222T-120VAC Normally Closed Brass 1/4 in 0-300 psig 356 ºF 0.088 in PTFE 120 VAC
0-20 bar 180 ºC 2.25 mm
1327BA302T-120VAC Normally Closed Brass 1/4 in 0-150 psig 176 ºF 0.118 in Buna N 120 VAC
0-10 bar 80 ºC 3 mm
1327BN302T-120VAC Normally Closed Brass 1/4 in 0-150 psig 176 ºF 0.118 in Neoprene 120 VAC
0-10 bar 80 ºC 3 mm
1327BE302T-120VAC Normally Closed Brass 1/4 in 0-150 psig 302 ºF 0.118 in EPDM 120 VAC
0-10 bar 150 ºC 3 mm
1327BV302T-120VAC Normally Closed Brass 1/4 in 0-150 psig 302 ºF 0.118 in FKM 120 VAC
0-10 bar 180 ºC 3 mm
1327BT302T-120VAC Normally Closed Brass 1/4 in 0-150 psig 356 ºF 0.118 in PTFE 120 VAC
0-10 bar 180 ºC 3 mm
1327BA402T-120VAC Normally Closed Brass 1/4 in 0-75 psig 176 ºF 0.157 in Buna N 120 VAC
0-5 bar 80 ºC 4 mm
1327BN402T-120VAC Normally Closed Brass 1/4 in 0-75 psig 176 ºF 0.157 in Neoprene 120 VAC
0-5 bar 80 ºC 4 mm
1327BE402T-120VAC Normally Closed Brass 1/4 in 0-75 psig 302 ºF 0.157 in EPDM 120 VAC
0-5 bar 150 ºC 4 mm
1327BV402T-120VAC Normally Closed Brass 1/4 in 0-75 psig 302 ºF 0.157 in FKM 120 VAC
0-5 bar 180 ºC 4 mm
1327BT402T-120VAC Normally Closed Brass 1/4 in 0-75 psig 356 ºF 0.157 in PTFE 120 VAC
0-5 bar 180 ºC 4 mm
1327BA502T-120VAC Normally Closed Brass 1/4 in 0-45 psig 176 ºF 0.197 in Buna N 120 VAC
0-3 bar 80 ºC 5 mm
1327BN502T-120VAC Normally Closed Brass 1/4 in 0-45 psig 176 ºF 0.197 in Neoprene 120 VAC
0-3 bar 80 ºC 5 mm
1327BE502T-120VAC Normally Closed Brass 1/4 in 0-45 psig 302 ºF 0.197 in EPDM 120 VAC
0-3 bar 150 ºC 5 mm
1327BV502T-120VAC Normally Closed Brass 1/4 in 0-45 psig 302 ºF 0.197 in FKM 120 VAC
0-3 bar 180 ºC 5 mm
1327BA522T-120VAC Normally Closed Brass 1/4 in 0-33 psig 176 ºF 0.206 in Buna N 120 VAC
0-2.2 bar 80 ºC 5.25 mm
1327BN522T-120VAC Normally Closed Brass 1/4 in 0-34 psig 176 ºF 0.206 in Neoprene 120 VAC
0-2.3 bar 80 ºC 5.25 mm
1327BE522T-120VAC Normally Closed Brass 1/4 in 0-35 psig 302 ºF 0.206 in EPDM 120 VAC
0-2.4 bar 150 ºC 5.25 mm
1327BV522T-120VAC Normally Closed Brass 1/4 in 0-36 psig 302 ºF 0.206 in FKM 120 VAC
0-2.5 bar 180 ºC 5.25 mm
1327BA122NAT-120VAC Normally Open Brass 1/4 in 0-750 psig 176 ºF 0.049 in Buna N 120 VAC
0-50 bar 80 ºC 1.25 mm
1327BN122NAT-120VAC Normally Open Brass 1/4 in 0-750 psig 176 ºF 0.049 in Neoprene 120 VAC
0-50 bar 80 ºC 1.25 mm
1327BE122NAT-120VAC Normally Open Brass 1/4 in 0-750 psig 302 ºF 0.049 in EPDM 120 VAC
0-50 bar 150 ºC 1.25 mm
1327BV122NAT-120VAC Normally Open Brass 1/4 in 0-750 psig 302 ºF 0.049 in FKM 120 VAC
0-50 bar 180 ºC 1.25 mm
1327BT122INAT-120VAC Normally Open Brass 1/4 in 0-750 psig 356 ºF 0.049 in PTFE 120 VAC
0-50 bar 180 ºC 1.25 mm
1327BA172NAT-120VAC Normally Open Brass 1/4 in 0-300 psig 176 ºF 0.068 in Buna N 120 VAC
0-20 bar 80 ºC 1.75 mm
1327BN172NAT-120VAC Normally Open Brass 1/4 in 0-300 psig 176 ºF 0.068 in Neoprene 120 VAC
0-20 bar 80 ºC 1.75 mm
1327BE172NAT-120VAC Normally Open Brass 1/4 in 0-300 psig 302 ºF 0.068 in EPDM 120 VAC
0-20 bar 150 ºC 1.75 mm
1327BV172NAT-120VAC Normally Open Brass 1/4 in 0-300 psig 302 ºF 0.068 in FKM 120 VAC
0-20 bar 180 ºC 1.75 mm
1327BT172INAT-120VAC Normally Open Brass 1/4 in 0-300 psig 356 ºF 0.068 in PTFE 120 VAC
0-20 bar 180 ºC 1.75 mm
1327BA222NAT-120VAC Normally Open Brass 1/4 in 0-180 psig 176 ºF 0.088 in Buna N 120 VAC
0-12 bar 80 ºC 2.25 mm
1327BN222NAT-120VAC Normally Open Brass 1/4 in 0-180 psig 176 ºF 0.088 in Neoprene 120 VAC
0-12 bar 80 ºC 2.25 mm
1327BE222NAT-120VAC Normally Open Brass 1/4 in 0-180 psig 302 ºF 0.088 in EPDM 120 VAC
0-12 bar 150 ºC 2.25 mm
1327BV222NAT-120VAC Normally Open Brass 1/4 in 0-180 psig 302 ºF 0.088 in FKM 120 VAC
0-12 bar 180 ºC 2.25 mm
1327BT222INAT-120VAC Normally Open Brass 1/4 in 0-180 psig 356 ºF 0.088 in PTFE 120 VAC
0-12 bar 180 ºC 2.25 mm
1327BA252NAT-120VAC Normally Open Brass 1/4 in 0-150 psig 176 ºF 0.098 in Buna N 120 VAC
0-10 bar 80 ºC 2.5 mm
1327BN252NAT-120VAC Normally Open Brass 1/4 in 0-150 psig 176 ºF 0.098 in Neoprene 120 VAC
0-10 bar 80 ºC 2.5 mm
1327BE252NAT-120VAC Normally Open Brass 1/4 in 0-150 psig 302 ºF 0.098 in EPDM 120 VAC
0-10 bar 150 ºC 2.5 mm
1327BV252NAT-120VAC Normally Open Brass 1/4 in 0-150 psig 302 ºF 0.098 in FKM 120 VAC
0-10 bar 180 ºC 2.5 mm
1327BA302INA-120VAC Normally Open Brass 1/4 in 0-150 psig 176 ºF 0.118 in Buna N 120 VAC
0-10 bar 80 ºC 3 mm
1327BN302INA-120VAC Normally Open Brass 1/4 in 0-150 psig 176 ºF 0.118 in Neoprene 120 VAC
0-10 bar 80 ºC 3 mm
1327BE302INA-120VAC Normally Open Brass 1/4 in 0-150 psig 302 ºF 0.118 in EPDM 120 VAC
0-10 bar 150 ºC 3 mm
1327BV302INA-120VAC Normally Open Brass 1/4 in 0-150 psig 302 ºF 0.118 in FKM 120 VAC
0-10 bar 180 ºC 3 mm
1327BT302INA-120VAC Normally Open Brass 1/4 in 0-150 psig 356 ºF 0.118 in PTFE 120 VAC
0-10 bar 180 ºC 3 mm
1327BA402INA-120VAC Normally Open Brass 1/4 in 0-75 psig 176 ºF 0.157 in Buna N 120 VAC
0-5 bar 80 ºC 4 mm
1327BN402INA-120VAC Normally Open Brass 1/4 in 0-75 psig 176 ºF 0.157 in Neoprene 120 VAC
0-5 bar 80 ºC 4 mm
1327BE402INA-120VAC Normally Open Brass 1/4 in 0-75 psig 302 ºF 0.157 in EPDM 120 VAC
0-5 bar 150 ºC 4 mm
1327BV402INA-120VAC Normally Open Brass 1/4 in 0-75 psig 302 ºF 0.157 in FKM 120 VAC
0-5 bar 180 ºC 4 mm
1327BT402INA-120VAC Normally Open Brass 1/4 in 0-75 psig 356 ºF 0.157 in PTFE 120 VAC
0-5 bar 180 ºC 4 mm
1327BA122T-240VAC Normally Closed Brass 1/4 in 0-1050 psig 176 ºF .049 in Buna N 240 VAC
0-70 bar 80 ºC 1.25 mm
1327BN122T-240VAC Normally Closed Brass 1/4 in 0-1050 psig 176 ºF .049 in Neoprene 240 VAC
0-70 bar 80 ºC 1.25 mm
1327BE122T-240VAC Normally Closed Brass 1/4 in 0-1050 psig 302 ºF .04
