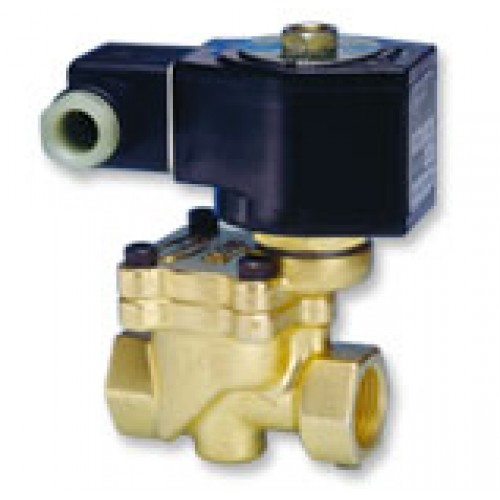

Jefferson solenoid valve 1390 Series 2-Way Solenoid Valves Item # 1390BA2T-120VAC
Features
- Normally closed and normally open
- Direct acting. No minimum differential pressure to operate
- Brass, iron, and stainless steel body.Applications
- Instrumentation. Laboratory
- Burner pilot for gas and oil
- Welding equipment. Humidifiers
| Specifications |
Series |
|
1390 |
|
||
Valve Type |
|
Normally Closed |
|
||
Body Material |
|
Brass |
|
||
Port Size |
|
1/4 in |
|
||
Port Type |
|
Female NPT |
|
||
Operating Pressure |
|
1.5-225 psig .1-15 bar |
|
||
Max. Temperature |
|
176 ºF 80 ºC |
|
||
Flow Coefficient (Cv) |
|
0.94 |
|
||
Orifice Size |
|
.24 in 6 mm |
|
||
Seat Material |
|
Buna N |
|
||
Coil Type |
|
MF13C |
|
||
Voltage |
|
120 VAC |
|
||
Coil VA Inrush Amperage |
|
45 |
|
||
Coil VA Holding Amperage |
|
27 |
|
||
Options (Prefix) |
|
Y - Weather proof housing. YC - Water, weather and saline corrosion proof coils. Z - Explosion and weather proof housing. ZC - Explosion and weather proof coils. |
|
||
Dim. A |
|
1/4 in |
|
||
Dim. B |
|
1.89 in 48 mm |
|
||
Dim. C |
|
.59 in 15 mm |
|
||
Dim. D |
|
3.03 in 77 mm |
|
||
Dim. E |
|
2.24 in 57 mm |
|
||
Dim. F |
|
.87 in 22 mm |
|
||
Dim. G |
|
3.35 in 85 mm |
|
||
Dim. H |
|
1.06 in 27 mm |
|
||
Dim. I |
|
2.05 in 52 mm |
|
||
Weight |
|
1.6 lbs |
Item # Valve Type Body Material Port Size Max. Pressure Max. Temperature Orifice Size Seat Material Voltage
1390BA2T-120VAC Normally Closed Brass 1/4 in 225 psig 176 ºF .24 in Buna N 120 VAC
15 bar 80 ºC 6 mm
1390BN2T-120VAC Normally Closed Brass 1/4 in 225 psig 176 ºF .24 in Neoprene 120 VAC
15 bar 80 ºC 6 mm
1390BE2T-120VAC Normally Closed Brass 1/4 in 225 psig 302 ºF .24 in EPDM 120 VAC
15 bar 150 ºC 6 mm
1390BV2T-120VAC Normally Closed Brass 1/4 in 225 psig 302 ºF .24 in FKM 120 VAC
15 bar 150 ºC 6 mm
1390BT2T-120VAC Normally Closed Brass 1/4 in 225 psig 356 ºF .24 in PTFE 120 VAC
15 bar 180 ºC 6 mm
1390BA2INAT-120VAC Normally Open Brass 1/4 in 150 psig 176 ºF .24 in Buna N 120 VAC
10 bar 80 ºC 6 mm
1390BN2INAT-120VAC Normally Open Brass 1/4 in 150 psig 176 ºF .24 in Neoprene 120 VAC
10 bar 80 ºC 6 mm
1390BE2INAT-120VAC Normally Open Brass 1/4 in 150 psig 302 ºF .24 in EPDM 120 VAC
10 bar 150 ºC 6 mm
1390BV2INAT-120VAC Normally Open Brass 1/4 in 150 psig 302 ºF .24 in FKM 120 VAC
10 bar 150 ºC 6 mm
1390BT2INAT-120VAC Normally Open Brass 1/4 in 150 psig 356 ºF .24 in PTFE 120 VAC
10 bar 180 ºC 6 mm
1390BA3T-120VAC Normally Closed Brass 3/8 in 225 psig 176 ºF 0.35 in Buna N 120 VAC
15 bar 80 ºC 9 mm
1390BN3T-120VAC Normally Closed Brass 3/8 in 225 psig 176 ºF 0.35 in Neoprene 120 VAC
15 bar 80 ºC 9 mm
1390BE3T-120VAC Normally Closed Brass 3/8 in 225 psig 302 ºF 0.35 in EPDM 120 VAC
15 bar 150 ºC 9 mm
1390BV3T-120VAC Normally Closed Brass 3/8 in 225 psig 302 ºF 0.35 in FKM 120 VAC
15 bar 150 ºC 9 mm
1390BT3T-120VAC Normally Closed Brass 3/8 in 225 psig 356 ºF 0.35 in PTFE 120 VAC
15 bar 180 ºC 9 mm
1390BA3INAT-120VAC Normally Open Brass 3/8 in 150 psig 176 ºF 0.35 in Buna N 120 VAC
10 bar 80 ºC 9 mm
1390BN3INAT-120VAC Normally Open Brass 3/8 in 150 psig 176 ºF 0.35 in Neoprene 120 VAC
10 bar 80 ºC 9 mm
1390BE3INAT-120VAC Normally Open Brass 3/8 in 150 psig 302 ºF 0.35 in EPDM 120 VAC
10 bar 150 ºC 9 mm
1390BV3INAT-120VAC Normally Open Brass 3/8 in 150 psig 302 ºF 0.35 in FKM 120 VAC
10 bar 150 ºC 9 mm
1390BT3INAT-120VAC Normally Open Brass 3/8 in 150 psig 356 ºF 0.35 in PTFE 120 VAC
10 bar 180 ºC 9 mm
1390BA4T-120VAC Normally Closed Brass 1/2 in 225 psig 176 ºF 0.47 in Buna N 120 VAC
15 bar 80 ºC 12 mm
1390BN4T-120VAC Normally Closed Brass 1/2 in 225 psig 176 ºF 0.47 in Neoprene 120 VAC
15 bar 80 ºC 12 mm
1390BE4T-120VAC Normally Closed Brass 1/2 in 225 psig 302 ºF 0.47 in EPDM 120 VAC
15 bar 150 ºC 12 mm
1390BV4T-120VAC Normally Closed Brass 1/2 in 225 psig 302 ºF 0.47 in FKM 120 VAC
15 bar 150 ºC 12 mm
1390BT4T-120VAC Normally Closed Brass 1/2 in 225 psig 356 ºF 0.47 in PTFE 120 VAC
15 bar 180 ºC 12 mm
1390BA4INAT-120VAC Normally Open Brass 1/2 in 150 psig 176 ºF 0.47 in Buna N 120 VAC
10 bar 80 ºC 12 mm
1390BN4INAT-120VAC Normally Open Brass 1/2 in 150 psig 176 ºF 0.47 in Neoprene 120 VAC
10 bar 80 ºC 12 mm
1390BE4INAT-120VAC Normally Open Brass 1/2 in 150 psig 302 ºF 0.47 in EPDM 120 VAC
10 bar 150 ºC 12 mm
1390BV4INAT-120VAC Normally Open Brass 1/2 in 150 psig 302 ºF 0.47 in FKM 120 VAC
10 bar 150 ºC 12 mm
1390BT4INAT-120VAC Normally Open Brass 1/2 in 150 psig 356 ºF 0.47 in PTFE 120 VAC
10 bar 180 ºC 12 mm
1390IA2T-120VAC Normally Closed 316 Stainless Steel 1/4 in 225 psig 176 ºF .24 in Buna N 120 VAC
15 bar 80 ºC 6 mm
1390IN2T-120VAC Normally Closed 316 Stainless Steel 1/4 in 225 psig 176 ºF .24 in Neoprene 120 VAC
15 bar 80 ºC 6 mm
1390IE2T-120VAC Normally Closed 316 Stainless Steel 1/4 in 225 psig 302 ºF .24 in EPDM 120 VAC
15 bar 150 ºC 6 mm
1390IV2T-120VAC Normally Closed 316 Stainless Steel 1/4 in 225 psig 302 ºF .24 in FKM 120 VAC
15 bar 150 ºC 6 mm
1390IT2T-120VAC Normally Closed 316 Stainless Steel 1/4 in 225 psig 356 ºF .24 in PTFE 120 VAC
15 bar 180 ºC 6 mm
1390IA2INAT-120VAC Normally Open 316 Stainless Steel 1/4 in 150 psig 176 ºF .24 in Buna N 120 VAC
10 bar 80 ºC 6 mm
1390IN2INAT-120VAC Normally Open 316 Stainless Steel 1/4 in 150 psig 176 ºF .24 in Neoprene 120 VAC
10 bar 80 ºC 6 mm
1390IE2INAT-120VAC Normally Open 316 Stainless Steel 1/4 in 150 psig 302 ºF .24 in EPDM 120 VAC
10 bar 150 ºC 6 mm
1390IV2INAT-120VAC Normally Open 316 Stainless Steel 1/4 in 150 psig 302 ºF .24 in FKM 120 VAC
10 bar 150 ºC 6 mm
1390IT2INAT-120VAC Normally Open 316 Stainless Steel 1/4 in 150 psig 356 ºF .24 in PTFE 120 VAC
10 bar 180 ºC 6 mm
1390IA3T-120VAC Normally Closed 316 Stainless Steel 3/8 in 225 psig 176 ºF 0.35 in Buna N 120 VAC
15 bar 80 ºC 9 mm
1390IN3T-120VAC Normally Closed 316 Stainless Steel 3/8 in 225 psig 176 ºF 0.35 in Neoprene 120 VAC
15 bar 80 ºC 9 mm
1390IE3T-120VAC Normally Closed 316 Stainless Steel 3/8 in 225 psig 302 ºF 0.35 in EPDM 120 VAC
15 bar 150 ºC 9 mm
1390IV3T-120VAC Normally Closed 316 Stainless Steel 3/8 in 225 psig 302 ºF 0.35 in FKM 120 VAC
15 bar 150 ºC 9 mm
1390IT3T-120VAC Normally Closed 316 Stainless Steel 3/8 in 225 psig 356 ºF 0.35 in PTFE 120 VAC
15 bar 180 ºC 9 mm
1390IA3INAT-120VAC Normally Open 316 Stainless Steel 3/8 in 150 psig 176 ºF 0.35 in Buna N 120 VAC
10 bar 80 ºC 9 mm
1390IN3INAT-120VAC Normally Open 316 Stainless Steel 3/8 in 150 psig 176 ºF 0.35 in Neoprene 120 VAC
10 bar 80 ºC 9 mm
1390IE3INAT-120VAC Normally Open 316 Stainless Steel 3/8 in 150 psig 302 ºF 0.35 in EPDM 120 VAC
10 bar 150 ºC 9 mm
1390IV3INAT-120VAC Normally Open 316 Stainless Steel 3/8 in 150 psig 302 ºF 0.35 in FKM 120 VAC
10 bar 150 ºC 9 mm
1390IT3INAT-120VAC Normally Open 316 Stainless Steel 3/8 in 150 psig 356 ºF 0.35 in PTFE 120 VAC
10 bar 180 ºC 9 mm
1390IA4T-120VAC Normally Closed 316 Stainless Steel 1/2 in 225 psig 176 ºF 0.47 in Buna N 120 VAC
15 bar 80 ºC 12 mm
1390IN4T-120VAC Normally Closed 316 Stainless Steel 1/2 in 225 psig 176 ºF 0.47 in Neoprene 120 VAC
15 bar 80 ºC 12 mm
1390IE4T-120VAC Normally Closed 316 Stainless Steel 1/2 in 225 psig 302 ºF 0.47 in EPDM 120 VAC
15 bar 150 ºC 12 mm
1390IV4T-120VAC Normally Closed 316 Stainless Steel 1/2 in 225 psig 302 ºF 0.47 in FKM 120 VAC
15 bar 150 ºC 12 mm
1390IT4T-120VAC Normally Closed 316 Stainless Steel 1/2 in 225 psig 356 ºF 0.47 in PTFE 120 VAC
15 bar 180 ºC 12 mm
1390IA4INAT-120VAC Normally Open 316 Stainless Steel 1/2 in 150 psig 176 ºF 0.47 in Buna N 120 VAC
10 bar 80 ºC 12 mm
1390IN4INAT-120VAC Normally Open 316 Stainless Steel 1/2 in 150 psig 176 ºF 0.47 in Neoprene 120 VAC
10 bar 80 ºC 12 mm
1390IE4INAT-120VAC Normally Open 316 Stainless Steel 1/2 in 150 psig 302 ºF 0.47 in EPDM 120 VAC
10 bar 150 ºC 12 mm
1390IV4INAT-120VAC Normally Open 316 Stainless Steel 1/2 in 150 psig 302 ºF 0.47 in FKM 120 VAC
10 bar 150 ºC 12 mm
1390IT4INAT-120VAC Normally Open 316 Stainless Steel 1/2 in 150 psig 356 ºF 0.47 in PTFE 120 VAC
10 bar 180 ºC 12 mm
1390BA2T-220VAC Normally Closed Brass 1/4 in 225 psig 176 ºF .24 in Buna N 220 VAC
15 bar 80 ºC 6 mm &
