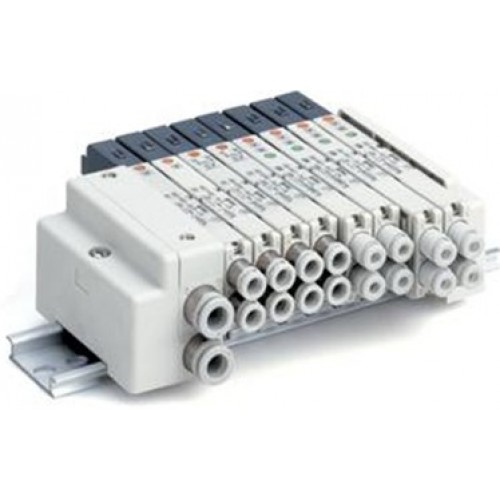

SQ2*4*, 2000 Series, 5 Port Solenoid Valve, Plug-in Type, New

The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ uses cassette style valves and manifolds, making it simple to increase or decrease the number of stations on a DIN rail.  Valves are available with 12VDC or 24VDC rated voltage.  Actuation options include 5 port single solenoid, 5 port double solenoid, and dual 3/2 ported.  Manifold variations for the SQ plug-in series include EX510 Gateway-type serial transmission system, D-sub connector, flat ribbon cable connector, PC wiring system compatible flat ribbon cable, terminal block box, or a lead wire kit.  The SQ plug lead units are available with D-sub connector, flat ribbon cable connector or PC wiring system compatible flat ribbon cable kits.

• Fluid: Air/inert gas
• Maximum operating pressure: 0.7MPa
• Effective area mm² (Cv factor):0.40 to 0.71
• Coil rated voltage: 12, 24VDC
• Power consumption (current):
  24VDC; 0.4W DC (17mA), 12VDC; 0.4W DC (34mA)
• Ambient & fluid temperature: -10 to 50°C
