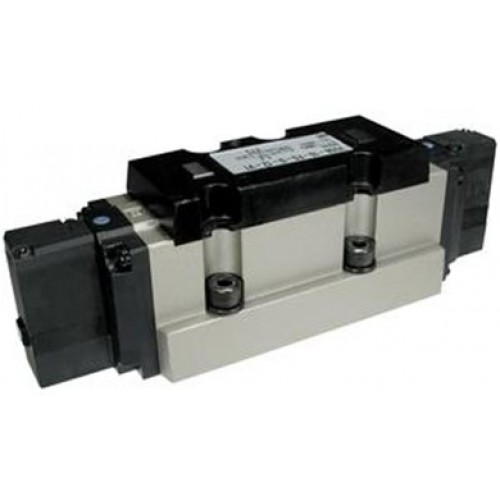

SMC solenoid valve 4 & 5 Port VSS/VSR VS*8-10 (for USA), ISO Interface Solenoid Valve

VSS/VSR  size 1, 2 & 3 are plug-in, base mounted interface valves conforming to ISO standards. The valve design offers maximum flexibility and is available in either a high flow rubber seal (model VSR), or matched ground spool and sleeve (model VSS). The lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work.  In addition, SMC now offers a light weight, large capacity mini ISO valve (size 01).

• Fluid: air, inertia gas
• Maximum operating pressure: 1.0MPa
• Minimum operating pressure: 0.1MPa
• Flow rate: Cv 5.6
• Coil rated voltage: 12, 24VDC
• Rating: IP67, NEMA4 Hose Down
