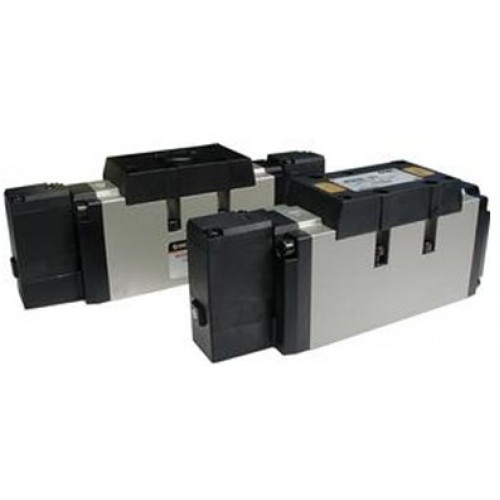

SMC solenoid valve 4 & 5 Port VFS4000, Base Mounted Valve, Plug-in & Non Plug-in

Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

• Fluid: air and inert gas
• Operating pressure: 0.1MPa to 1.0MPa
• Effective area (Cv): 1.7 to 3.6
• Coil rated voltage: 100, 200 VAC 50/60Hz; 24VDC
• Response time: 55 or less ms
• Ambient/fluid temp: -10 to +60°C
