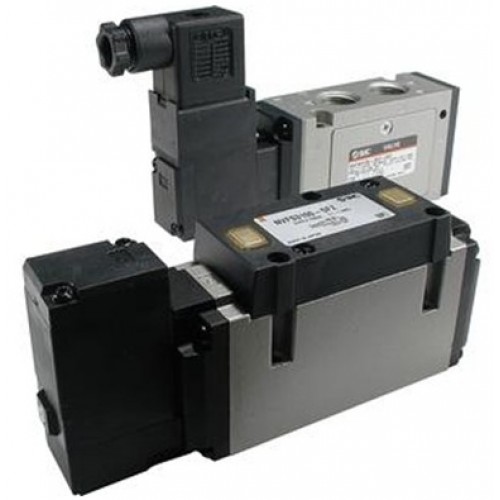

SMC solenoid valve 4 & 5 Port VFS3000, Body Ported & Base Mounted Type Valve

Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.

• VFS3000, body ported & base mounted valves
• Thread type: Rc(PT)
• Port sizes: 1/4, 3/8
• Maximum operating pressure: 9.9kgf/cm²
• Ambient & fluid temperature: -10 to 60°C
• Manual override: non locking push style
