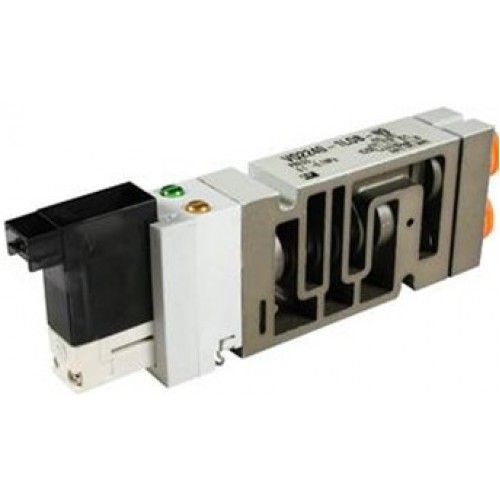

SMC solenoid valve 4 & 5 Port VQ2*4*, 2000 Series, 5 Port Solenoid Valve, Non Plug-in, Body Ported
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.
- Fluid: air/inert gas
- Operating pressure range: 0.1 - 0.7MPa
(high pressure type 0.8MPa) - Effective area mm 2 (Cv): metal seal: 14.6 (0.81);
rubber seal: 16.2 (0.90) - Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC - Response time (ms) standard 1W; H 1.5W:
metal seal 22 or less;
rubber seal 24 or less - Ambient & fluid temperature: -10 to 50°C
