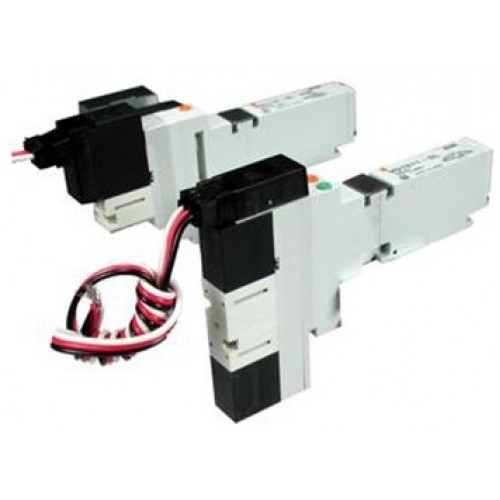

SMC solenoid valve 4 & 5 Port VQ1*1*, 1000 Series, 5 Port Solenoid Valve, Non Plug-in, Base Mounted
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.
- Fluid: air/inert gas
- Operating pressure range: 0.1MPa - 0.7MPa
(high pressure type 0.8MPa) - Effective area mm 2 (Cv): metal seal 3.6 (0.2);
rubber seal: 5.4 (0.3) - Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC - Response time (ms) standard 1W, H 1.5W:
2 position metal seal 12 or less;
2 position rubber seal 15 or less
3 sosition metal seal 20 or less;
3 position rubber seal 25 or less - Ambient & fluid temperature: -10 to 50°C
