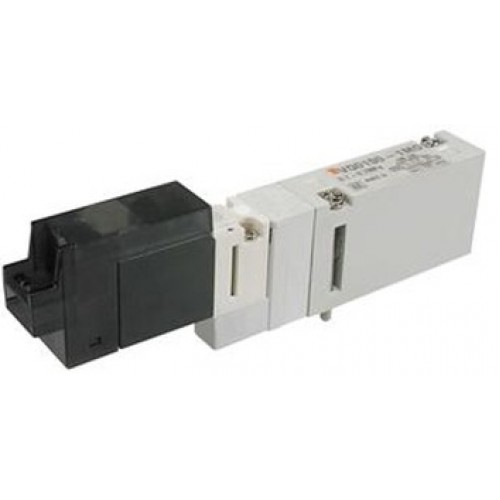

SMC solenoid valve 4 & 5 Port VQ0*5*, 0000 Series, 5 Port Solenoid Valve, Base Mounted

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Fluid: air/inert gas
• Operating pressure range: 0.1MPa - 0.7MPa
  (high pressure style: 0.8MPa)
• Cv factor: 2 position metal seal 0.15;
  2 position rubber seal 0.2
  3 position metal seal 0.11;
  3 position rubber seal 0.15
• Response time standard 1W, H 1.5W:
  2 position 15 or less;
  3 position 25 or less
• Ambient & fluid temperature: -10 to 50°C
