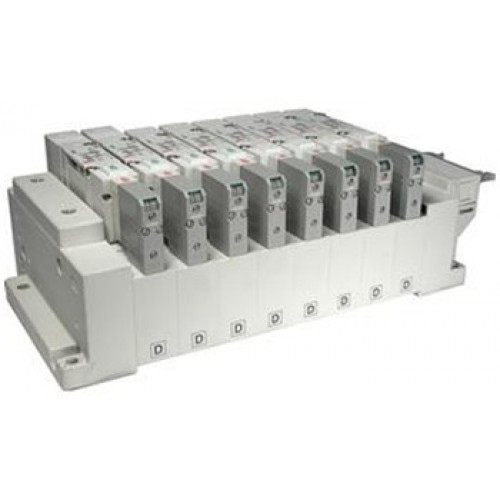

SMC solenoid valve 4 & 5 Port SV SS5V2-10F/P*, 2000 Series, Tie Rod Base Manifold, D-sub Connector & Flat Ribbon Cable

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

• Tie rod base manifold for SV2000 valve
• D-sub connector or flat ribbon cable
• Number of connectors (D-sub): 25 pins
• Number of connectors (flat ribbon): 26, 20, 10 pins
• Maximum 20 stations available as standard
• Optional DIN rail mount
• 6 port sizes available
