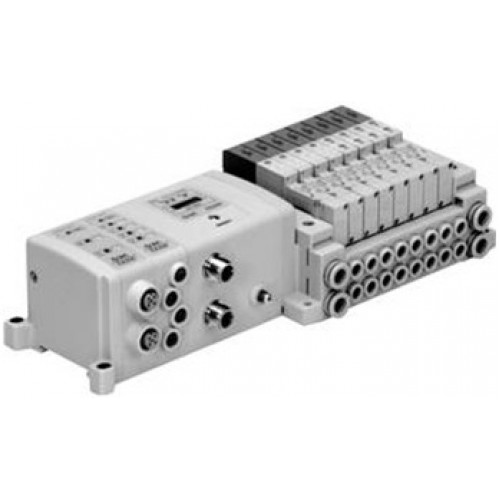

SMC solenoid valve 4 & 5 Port SV SS5V1-W10S1, 1000 Series, Tie Rod Base Manifold, Serial Wiring w/Input, Output Unit (for EX250)

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

• Tie rod base EX250 type manifold for SV1000 valves
• Serial wiring with input/output unit
• IP67 protection
• Number of inputs/outputs: 32 each
• Maximum 20 stations available as standard
• Optional DIN rail mount
• 6 port sizes available
