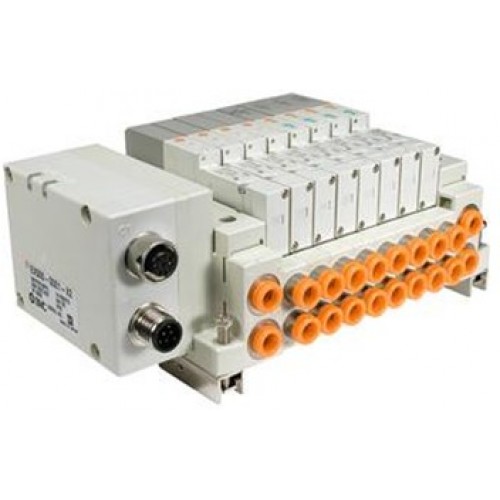

SMC solenoid valve 4 & 5 Port SV SS5V1-W10S*, 1000 Series, Tie Rod Base Manifold, Decentralized Serial Wiring (for EX500)

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.

• Tie rod base, EX500 type manifold base for SV1000 valves
• Decentralized serial wiring
• IP67 protection
• Maximum 16 stations available as standard
• Optional DIN rail mount
• 6 port sizes available
