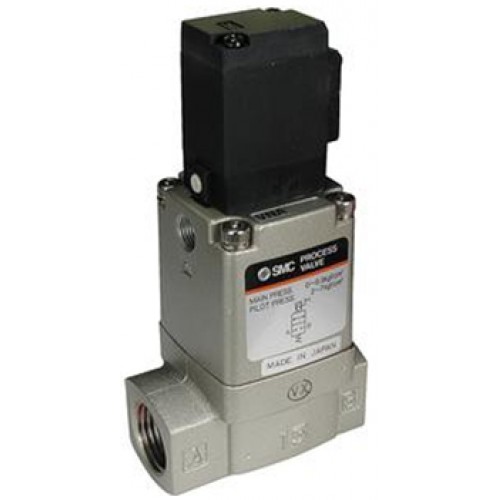

SMC solenoid valve 2 Port VN VNA (Solenoid), Process Valve for Air
The VN external pilot solenoid series offers 5 models of 2 and 3 port valves for general purpose use. Model VNA process valve is for compressed air and air-hydro circuit control. Model VNB for flow control permits application with a wide variety of fluids such as air, water, oil, gas and vacuum. VNC is a coolant valve available in a wide selection of port sizes and variations. The high pressure coolant valve, series VNH, is ideal for lubrication, dust blowing and cooling. By the adoption of a PTFE seal, the VND valve is suited for steam applications (max. 180°C).
- Fluid:air; CO 2 ; nitrogen gas; freon 11, 113, 114;
turbine oil, hydraulic fluid, argon, helium - Proof pressure: 1.5MPa
- Operating pressure range: 0 to 1MPa
- Effective area: 13 to 770mm 2
- Coil rated voltage: AC(50/60Hz) 100V, 200V, others (option);
DC 24V, others (option) - Ambient temperature: -5 to 50°C (no freezing)
