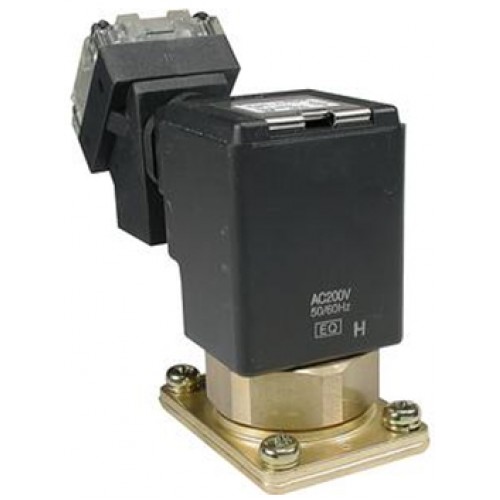

SMC solenoid valve 2 Port VCS, 2 Port Solenoid Valve for Steam Manifold, Single Unit

Series VC is a multipurpose, direct operated, 2 port solenoid valve. Special construction reduces operating resistance and moving parts for improved longevity and wear resistance. A built-in rectifier eliminates AC coil burning and buzzing. The VC enclosure is IP65 equivalent.

• Manifold use type, air operated poppet valve
• Fluid: steam (184°C or less)
• Maximum operating pressure: 1.0MPa
• Effective area: 0.16 to 2.1Cv
• Coil rated voltage: 100, 110, 200, 220, 230VAC (50/60Hz)
• Port size: 1/8 (6A), 1/4 (8A), 3/8 (10A), 1/2 (15A), 3/4 (20A)
