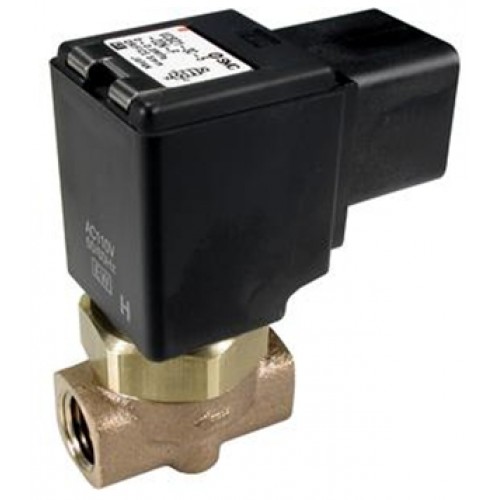

SMC solenoid valve 2 Port VCB, 2 Port Solenoid Valve for Warm Water, Single Unit
Series VC is a multipurpose, direct operated, 2 port solenoid valve. Special construction reduces operating resistance and moving parts for improved longevity and wear resistance. A built-in rectifier eliminates AC coil burning and buzzing. The VC enclosure is IP65 equivalent.
- Fluid: heated water (99°C or less)
- Max. operating pressure (MPa): 3.0
- Effective area (Cv): 0.16 to 2.1
- Coil rated voltage: 100, 110, 200, 220, 230VAC (50/60Hz)
- Ambient temp: -20° to 100°C
- Fluid temp: 99°C or less
