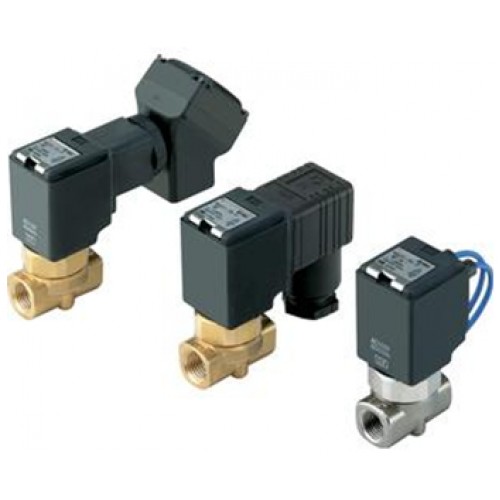

SMC solenoid valve 2 Port VC VCL20/30/40, 2 Port Solenoid Valve for Oil
Series VC is a multipurpose, direct operated, 2 port solenoid valve. Special construction reduces operating resistance and moving parts for improved longevity and wear resistance. A built-in rectifier eliminates AC coil burning and buzzing. The VC enclosure is IP65 equivalent.
- Multipurpose valve for oil
- Withstand pressure: 5.0MPa
- Ambient temperature: -20 to 60°C (Standard)
-20 to 100°C (High temp.) - Fluid temperature: -10 to 60°C (Standard)
-10 to 100°C (High temp.) - Valve leakage cm³/min: 0 (with oil pressure)
