Versa solenoid valve LATCHING/MANUAL RESET VALVES

General Description

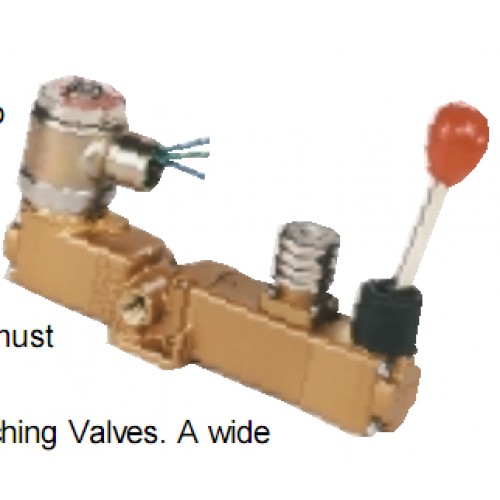

Latching valves are particularly suited to applications where it is desirable or mandatory to manually reset or restart a system. A typical application could involve the emergency shut-down of automatically monitored process operations. Loss or interruption of the control sig-nal to the valve actuator causes the valve to shift, latch and shut-down a process step. When the signal is restored the valve remains in the latched position until the operator manually unlatches it and allows the process step to resume. Positive latching in such an application is vitally important since many process operations are sequential and one step must not be started until the one ahead of it has started. This example is only one of many which can be accommodated through the use of Versa°s Latching Valves. A wide range of functional types, port sizes, actuators, and latching arrangements provide the engineer with a complete choice of valving to suit his particular needs.

Types Available
Series V316
Series V
Media Pneumatic; others, consult factory.Pneumatic and various other gases,
including corrosives.
Pressure: (minimum depends20 or 55 to 175 psi20 or 55 to 175 psi
on size and type)(1.4 or 3.8 to 12 bar)(1.4 or 3.8 to 12 bar)
Construction Materials Forged & machined brass;Investment cast & machined 316
NBR (nitrile) O ring sealsstainless steel; FKM (fluorocarbon) seals
Functional Type 3-way normally closed3-way normally closed
3-way normally open3-way normally open
3-way 3-position3-way 3-position
4-way 2 & 3 position4-way 2 & 3 position
Body Style BodyportedBodyported
Port Sizes & Flow 1/8°NPT or G1/8(C =1.4,  K =20.3)1/4°NPT (C = 1.8, K = 26)
v v  v  v
1/4°NPT or G1/4 (C =1.8,  K =26.1)
v v
3/8°NPT or G3/8 (C =3.4,  K =49.3)3/8°NPT (C = 2.0, K = 29)
v v  v  v
1/2°NPT or G1/2 (C =4.0,  K =58.0)1/2°NPT (C = 5.5, K = 80)
v v  v  v
3/4°NPT (C =9.7,  K =140.6)
v v
1°NPT    (C =11.1,  K =161.0)
v v
Actuation Solenoid/pilot for either ordinary service or Solenoid/pilot for either ordinary service or
hazardous service.hazardous service.
