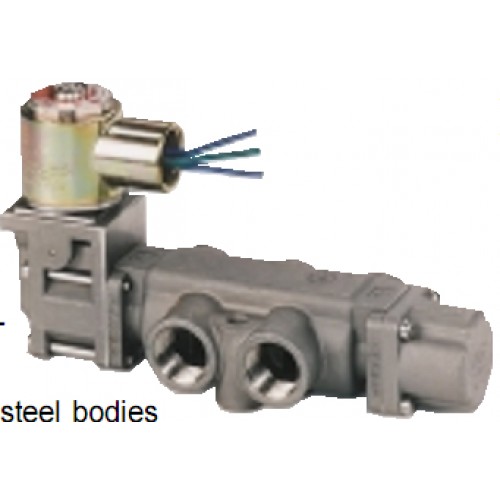

Versa solenoid valve series V316 Bodyported 3-Way and 4-Way Solenoid Valves
General Description
Versa Series V316 valves are available in 1/4° NPT, 3/8° NPT, or 1/2° NPT port sizes. Three-way designs are pro- vided with 3 ports; four-way designs have 5 ports. Each is available for 2-position or 3-position service. Investment cast 316 stainless steel bodies and actuating caps, coupled with 316 stainless steel internals makes this valve series compatible for use with aggressive media and environments. Each valve is solenoid/pilot actuated, which enables the use of
physically small solenoids and resultant low power consump-tion, and also assures a large positive shifting force without fear of coil burnout. A complete selection of electrical connec-tions, area classifications, and power requirements makes the most exacting and demanding specifications or applications
easy to satisfy.
Materials
Valve body, actuating caps, internal parts: 316 stainless steel
Valve seals: FKM (fluorocarbon)
Screws: stainless steel
Solenoid parts: sleeve, plunger & spring° 304, 430F and 302
stainless steel
coils°epoxy molded
coil cover (when applicable)°zinc chromate
coated steel
Porting Size
Inlet, outlet, & exhaust: 1/4° NPT, 3/8° NPT, or 1/2° NPT
Flow Rates (average for all ports)
1/4° NPT: C = 1.8 (K = 26)
v v
3/8° NPT: C = 2.0 (K = 29)
v v
1/2° NPT: C = 5.5 (K = 80)
v v
BASIC VALVE NUMBER
Double Solenoid/Spring Centered,
Double Solenoid/Port
Momentary ContactSize
Single Solenoid/SpringFlow
3-Position
Function
2-Position(NPT)
Return,2-PositionCv (Kv)
Exhaust Ports OpenBlocked Center
1/4°
VSG-3321-U-316-* VGG-3321-U-316-*
1.8(26)
3-way, 3/2
3/8°
VSG-3421-U-316-* VGG-3421-U-316-*
2.0(29)
Normally Closed
---------------
1/2°
VSG-3521-U-316-* VGG-3521-U-316-*
5.5(80)
VXX-3323-U-316-*
1/4°
3-Way, 3/3
1.8(26)
VXX-3423-U-316-*
---------------
3/8°
2.0(29)
Three-Position
VXX-3523-U-316-*
1/2°
5.5(80)
1.8(26)1/4°
VGS-3322-U-316-*
3-way, 3/2
2.0(29)3/8°
VGS-3422-U-316-*
Normally Open
SEE ABOVE
--------------- ---------------
5.5(80)1/2°
VGS-3522-U-316-*
---------------
SEE ABOVE ---------------
1.8(26)1/4°
3-Way, 3/3
2.0(29)3/8°
Three-Position
5.5(80)1/2°
1.8(26)1/4°
VSG-4322-U-316-* VGG-4322-U-316-* VXX-4323-U-316-* VXX-4324-U-316-*
2.0(29)3/8°
VSG-4422-U-316-* VGG-4422-U-316-* VXX-4423-U-316-* VXX-4424-U-316-*
5.5(80)1/2°
VSG-4522-U-316-* VGG-4522-U-316-* VXX-4523-U-316-* VXX-4524-U-316-*
4-Way
5/2 & 5/3
