Versa solenoid valve 3-WAY DIRECT SOLENOID VALVES
General Description

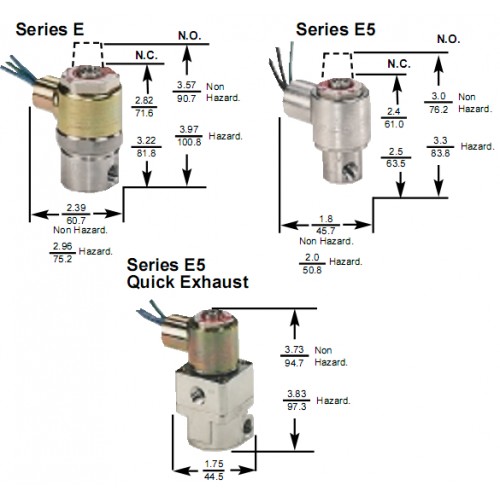

Two valve series, Series E and Series E5, comprise the direct actuated, 3 port/2 position valves. The only difference between the two series is physical size and weight, Series E being the greater of the two. Both series offer high reliability at low cost. Stainless steel construction provides the compatibility for use
with many aggressive media and environments. A variation of the valve type provides electrical quick exhaust valves. These valves function the same as a 3-way valve, but a larger capacity exhaust and rapid response to slight pressure differential during the de-energized portion of the cycle, results in a more rapid evacuation of the controlled device than would be expected with a standard 3-way valve.
Materials
Valve body: 430F stainless steel. Valve seals: Nitrile (Buna N). Solenoid parts: sleeve, plunger & spring° 304, 430F and 302 stainless steel coils°epoxy molded coil cover (when applicable)°zinc chromate coated steel Installation, Filtration and Lubrication Valves have no limitations on mounting orientation.
40 to 50 micron filtration and general purpose lubricating oil ISO, ASTM viscosity grade 32 recommended. Ambient temperature range 0°F (-18°C) to 180°F (82°C).
3-WAY DIRECT SOLENOID VALVE
BASIC VALVE NUMBER
PRODUCT NUMBER SELECTOR
Single Solenoid/Spring Return, 2-position
FunctionMaximum OperatingSeries ESeries E5Flow Cv (Kv)
Pressure Differential?1/8" NPT1/4" NPT1/8" NPTInletExhaust
3-Way, 3/2150 psi(10.0 bar) ESM-3201-34-*ESM-3301-34-*E5SM-3201-34-* .06 (.87).106 (1.5)
Normally Closed100 psi(6.9 bar) ESM-3201-44-*ESM-3301-44-*E5SM-3201-44-* .106 (1.5).106 (1.5)
Exhaust to75 psi(5.2 bar) ESM-3201-66-*ESM-3301-66-*------------------- .21 (3.1).21 (3.1)
Atmosphere60 psi(4.1 bar) --------------------------------------E5SM-3201-64-* .21 (3.1).106 (1.5)
(For Piped Exhaust50 psi(3.4 bar) ESM-3201-86-*ESM-3301-86-*------------------- .26 (3.8).21 (3.1)
add -H2 to valve30 psi(2.1 bar) --------------------------------------E5SM-3201-84-* .26 (3.8).106 (1.5)
number)20 psi(1.4 bar) ESM-3201-126-*ESM-3301-126-*------------------- .56 (8.1).21 (3.1)
Vacuum (AC only) ESM-3201-166-*ESM-3301-166-*------------------- .79 (11.5).21 (3.1)
3-Way, 3/2150 psi(10.0 bar) ESM-3202-43-H2-*ESM-3302-43-H2-*------------------- .06 (.87).106 (1.5)
Normally Open125 psi(8.6 bar) --------------------------------------E5SM-3202-33-H2-* .06 (.87).06 (8.7)
Piped Exhaust100 psi(6.9 bar) ESM-3202-44-H2-*ESM-3302-44-H2-*------------------- .106 (1.5).106 (1.5)
100 psi(6.9 bar) ESM-3202-84-H2-*ESM-3302-84-H2-*------------------- .106 (1.5).26 (3.8)
100 psi AC only (6.9 bar) --------------------------------------E5SM-3202-44-H2-* .106 (1.5).106 (1.5)
75 psi(5.2 bar) ESM-3202-66-H2-*ESM-3302-66-H2-*------------------- .21 (3.1).21 (3.1)
75 psi(5.2 bar) ESM-3202-86-H2-*ESM-3302-86-H2-*------------------- .21 (3.1).26 (3.8)
75 psi DC only (5.2 bar) --------------------------------------E5SM-3202-44-H2-* .106 (1.5).106 (1.5)
1/4°±NPT Inlet & Outle
Operating Pressure?
3/8°±NPT Exhaust
3-Way, 3/2
Normally Closed5-150 psi(0.3-10 bar)
-------------------------------------- E5QE-30303-316-* .055 (.80)3.3(48)
QUICK EXHAUST
5-100 psi(0.3-6.9 bar)-------------------------------------- E5QE-30404-316-* .075 (1.1)3.3(48)
