FEATURES :

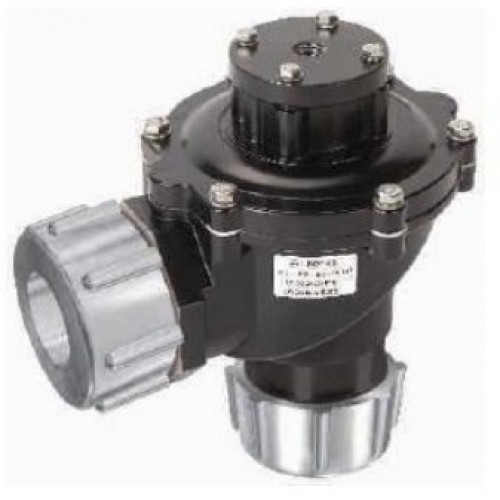

1). Pulse jet valve with double diaphragm for remote operation
with fast ON & OFF response.
2). Direct pipe mounted
3). Easily removable
4). Valve Condition : Normally Closed
| Model No. |
Pressure Range |
| 26106D |
0.5 - 8.5 bar |
| Type |
2 Port , 2 Positions |
| Orifice Size |
52 mm |
| Body Material |
Aluminium Die Cast, SS 316 Cast |
| Diaphragm |
Hytrel, Viton |
| Fasteners |
SS 304 |
| Seat, Seals |
NBR, Viton |
| Ambient / Fluid Temp |
- 20 °C to 85 °C |
| Port Connection |
1 1/2" |
FLOW FACTOR :
| PORT CONNECTION |
1 1/2" |
| kv (lpm) |
800 |
RESPONSE TIME DEPENDS ON PILOT VALVE ORIFICE & PIPE LENGTH BETWEEN PILOT AND VALVE.
* USE 2 PORT NORMALLY CLOSED PILOT TYPE VALVE WITH 3.5MM ORIFICE TO OPERATE THIS VALVE
|
