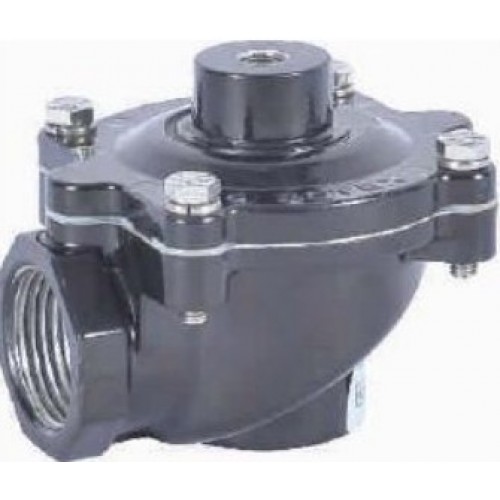

Rotex solenoid valve 25 NB REMOTE PILOT PULSE JET VALVE
FEATURES :
-
Remote operation where electric supply not permitted
-
Select valve type 20159 to operate the valve refer page 369 to 372
| Model No. | Pressure Range |
| 26108 | 0.5 - 8.5 bar |
| Type | 2 Port , 2 Positions |
| Orifice Size | 28 mm |
| Body Material | Aluminium Die Cast , SS 316 Cast |
| Diaphragm | Hytrel, Viton |
| Fasteners | SS 304 |
| Seat, Seals | NBR, Viton |
| Ambient / Fluid Temp Port Connection |
- 20 °C to 80 °C 3/4" , 1" |
FLOW FACTOR :
| PORT CONNECTION | kv (lpm) |
| 3/4" | 230 |
| 1" | 310 |
