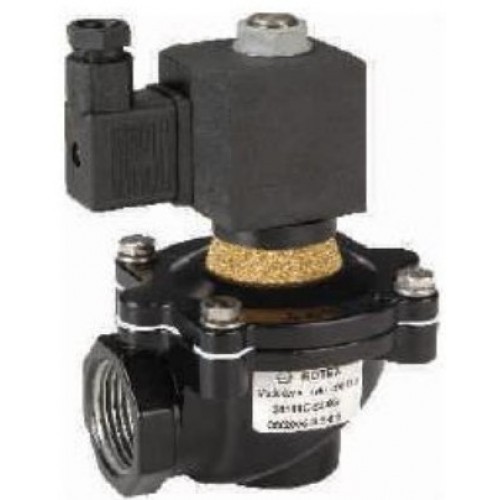

Rotex solenoid valve 28 NB PULSE JET SOLENOID VALVE
FEATURES :
1.Hytrel Diaphragm
2.Larger exhaust area protected with silencer for reducing noise
3.Solenoid capable of turning 3600.
4.Valve Condition : Normally Closed
SPECIFICATIONS :
|
Model No. |
Pressure Range |
|
24108 |
0.5 - 8.5 bar |
| Type | 2 Port , 2 Positions |
| Orifice Size | 28 mm |
| Body Material | Aluminium Die Cast , SS316 Cast |
| Guide Assembly | SS 304 |
| Shadow Ring | Copper |
| Plunger, Insert | SS 430 |
| Diaphragm | Hytrel, Viton |
| Seat, Seals | NBR, Viton |
| Ambient / Fluid Temp. | - 20 °C to 85 °C |
| Port Connection Response Time |
3/4", 1" 8 ms |
FLOW FACTOR :
|
Port Connection |
Kv (lpm) |
|
3/4" |
230 |
|
1" |
310 |
Enclosure :
1). Weather Proof enclosure with : Plug in type , Terminal box IP67
2). Explosion Proof with junction Box Ex d IIC, IP67
