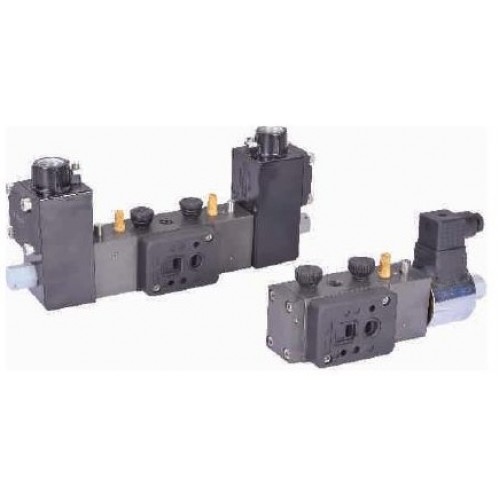

Rotex solenoid valve 5 PORT , 3 PORT CONVERTIBLE LOW POWER NAMUR SOLENOID VALVE
FEATURES :
-
Ideally suited where speed control by blocking exhaust is desire
-
Power fail to reset
-
Non return plug provided on the exhaust port
-
In 3 port mode exhaust purged to spring chamber
SPECIFICATIONS :
|
Model No. |
Pressure Range |
|
57450LW |
2 - 10 bar |
|
51450LW |
2 - 10 bar |
| Type | 5 / 2 , 3 / 2 |
| Orifice Size | 6, 12 mm |
| Body Material | Anodized Aluminium, SS 316 |
| Guide Assembly | SS 304 |
| Shadow Ring | Copper / Silver / None |
| Plunger, Insert | SS 430 |
| Spring | SS 302 |
| Seat, Seals | NBR, Viton |
| Fasteners | SS 304 |
| Ambient / Fluid Temp. | - 20 °C to 80 °C |
Enclosure:
1. General Purpose Flying lead / Plug-in
2. Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3. Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4. Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
process) available
Media :
Air , Inert Gases
Application :
Operation of double / single acting actuator
