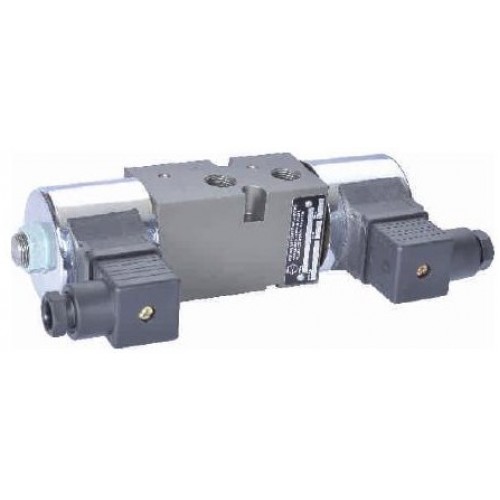

Rotex solenoid valve 3 PORT DIRECT ACTING REGULATING LOW POWER NAMUR SOLENOID VALVE
FEATURES:
-
Most suited for stopping spring return actuator at mid position set through limit switch
-
Air or Power failure to return
-
Solenoid can be operated directly or through PID controller
-
Ideal for modulating application
-
Dust cap provided on the exhaust port
SPECIFICATIONS :
|
Model No. |
Pressure Range |
|
30138LW |
0 - 10 bar |
| Type | 3 Port, 2 Positions |
| Orifice Size | 5 mm |
| Body Material | Anodized Aluminium, SS 316 |
| Guide Assembly | SS 304 |
| Shadow Ring | Copper / Silver / None |
| Plunger, Insert | SS 430 |
| Spring | SS 302 |
| Seat, Seals | NBR, Viton |
| Fasteners | SS 304 |
| Ambient / Fluid Temp. | - 20 °C to 80 °C |
Media :
Air , Inert Gases
Applications :
Operation of single acting actuator
Enclosure :
1. General Purpose Plug-in
2. Weather-Proof: Plug in type, Terminal Box as per IS 13947
3. Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4. Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
process) available.
