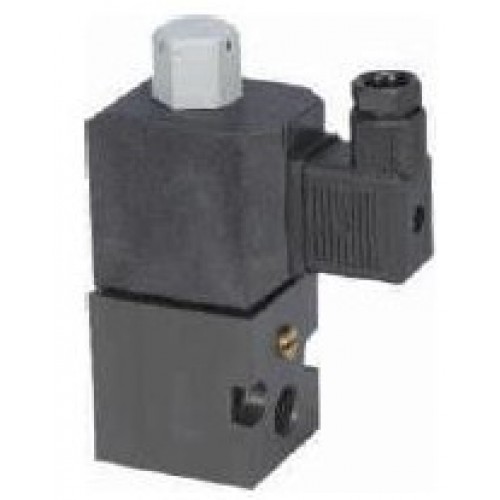

Rotex solenoid valve 3 PORT DIRECT ACTING LOW POWER NAMUR SOLENOID VALVE

FEATURES :

1.Ideally suited for Spring return actuator
2.Exhaust purged into spring chamber
3.Higher flow for faster operation
4.Air & power fail to return
5.Non return plug fitted on the exhaust port.

SPECIFICATIONS :



 Model No.
  Pressure

 30318LW
   0 - 10 bar




Type  3 Port, 2 Positions
 Orifice Size  5 mm
 Body Material  Anodized Aluminium, SS 316
 Guide Assembly  SS 304
 Shadow Ring  Copper / Silver / None
 Plunger, Insert  SS 430
 Spring  SS 302
 Seat, Seals  NBR, Viton
 Fasteners  SS 304
 Ambient / Fluid Temp.  - 20 °C  to  80 °C

Enclosure :

1.   General Purpose Plug-in
2.   Weather-Proof: Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
      process) available.

Media :

Air , Inert Gases

Applications :

Operation of single acting actuator
