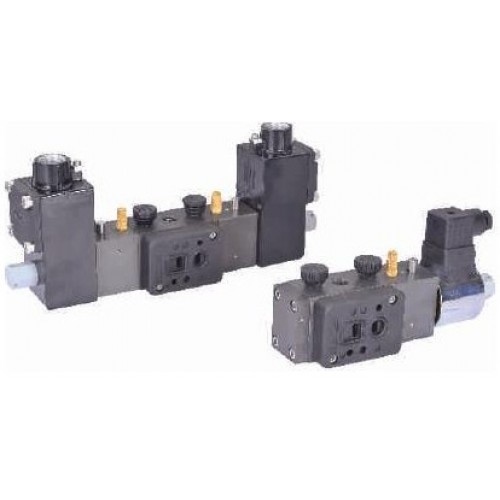

Rotex solenoid valve 5 PORT, 3 PORT CONVERTIBLE INLINE POPPET NAMUR SOLENOID VALVE

Features:

1. Ideally suited where speed control by blocking exhaust is desired
2. Power fail to reset
3. Non return plug provided on the exhaust port
4. In 3 port mode exhaust purged to spring chamber

SPECIFICATIONS :





Model No.	Pressure Range
57450	2 - 10 bar
51450	2 - 10 bar



Type	5 / 2 , 3 / 2
Orifice Size	6, 12 mm
Body Material	Anodized Aluminium , SS316
Guide Assembly	SS 304
Shadow Ring	Copper / Silver / None
Plunger, Insert	SS 430
Spring / Circlip	SS 302
Seat, Seals	NBR, Viton
Fasteners	SS 304
Ambient / Fluid Temp.	- 20 °C  to  80 °C





Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
      process) available
