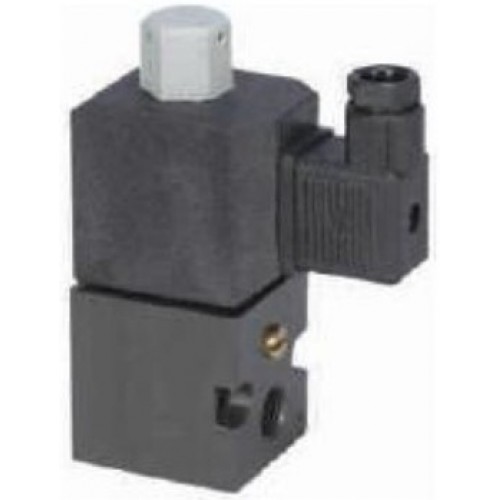

Rotex solenoid valve 3 PORT DIRECT ACTING NAMUR SOLENOID VALVE

Features :

1. Ideally Suited for Spring Return Actuator
2. Exhaust purged into Spring Chamber
3. Higher Flow for Faster Operation
4. Air and Power fail to Return
5. Non return plug fitted on the exhaust port

SPECIFICATIONS :





Model No.	Pressure Range
30318	0 - 10 bar







Type	3 Port 2 Positions
Orifice Size	5 mm
Body Material	Anodized Aluminium , SS316
Guide Assembly	SS 304
Shadow Ring	None
Plunger, Insert	SS 430
Springs	SS 302
Seat, Seals	NBR, Viton
Fasteners	SS 304
Ambient / Fluid Temp.	- 20 °C  to  80 °C





Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
      process) available.

Media :

Air , Inert Gases

Application :

Operation of single acting actuator
