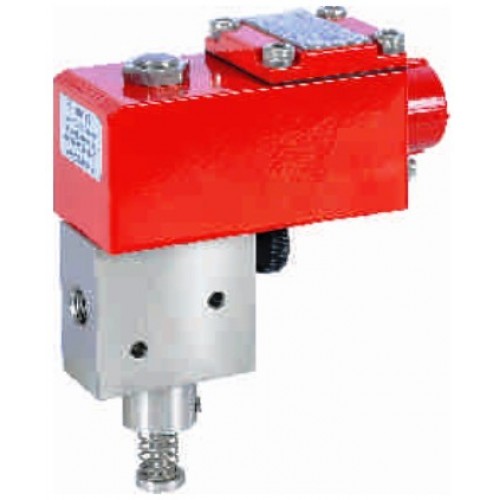

Rotex solenoid valve Engineered Valves 3 PORT UNIVERSAL TAMPER PROOF MANUAL RESET SOLENOID VALVE

FEATURES :

1. Bubble tight shut off
2. Mounts in any position.
3. Suitable for vacuum upto 10 ^-6  torr.
4. Vibration resistance up to 9g
5. Suitable for high speed cycling
6. Life > 10 million cycles



Model No.	Pressure Range
M3015	0 - 10 bar  0 - 20 bar



TECHNICAL SPECIFICATIONS :



Body Material	Anodized Aluminium, Brass, SS316
Guide Assembly	SS 304
Shadow - Ring	None
Plunger, Insert	SS 430
Spring	SS 302
Seat, Seals	NBR, Viton, EPDM
Fasteners	SS 304
Ambient / Fluid Temp	- 20 °C   to   80 °C
Orifice Size	10 mm



Media :
Air, Inert Gases, Water, Vacuum, Free Flowing Liquids,
Oil, Diesel, Kerosene, LPG.

Application :
Valve can only be operated when electrical supply to the solenoid is available and then be switched on manually.
Valve can be swithced off when power to the solenoid is removed.

Enclosure:

1.   General Purpose Flying lead / Plug-in
2.    Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.    Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.    Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
       (in process) available
