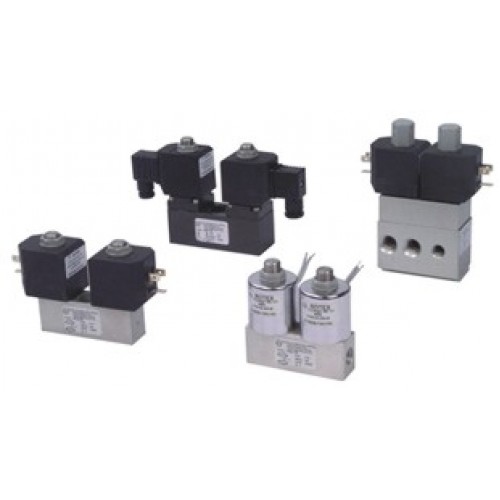

Rotex solenoid valve Customised Solenoid Valve 3 PORT 3 POSITION SOLENOID VALVE FOR TYRE INFLATION

Features :

1. Bubble tight shut off
2. Mounts in any position
3. Vibration resistance upto 9g
4. Suitable for high speed cycling
5. Speed up to 600 cycles/ min.
6. Life >10 million cycles
7. Provision to fix pressure sensor.

SPECIFICATION :




Model No	Pressure
VB4	0 - 16 bar
VB4	2 - 16 bar
VB9	2 - 25 bar
VB26	0 -16 bar





Valve Type	3/3 Direct Acting Normally Closed	3/3 Internal Pilot Operated Poppet Type Normally Closed
Body Material	Aluminium	Aluminium
Orifice	2.2 / 1.8 / 1.6	6
Port Connection	1/4" BSP	3/8 " BSP ( F)
Media	Air, Nitrogen	Air, Nitrogen
Pressure	0-14/ 0-30/ 0-37 bar	0 - 16 bar
Seal	NBR	NBR
Voltage	Any	Any
Enclosure	Weather proof Plug in IP67	Weather proof Plug in IP67
Guide Assemble	SS 304	SS 304
Plunger, Insert	SS 430	SS 430
Fastener	SS 304	SS 304
Spring	SS 302	SS 302
