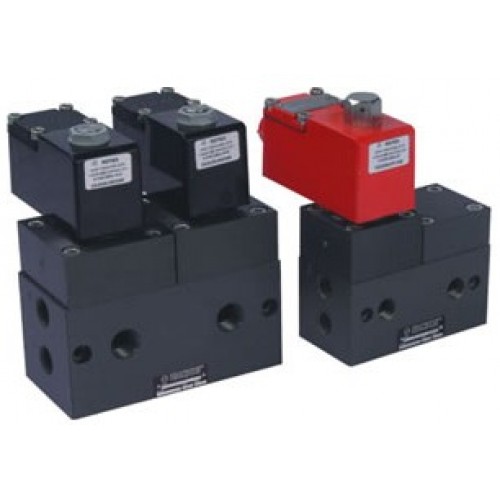

Rotex solenoid valve 5 PORT 2 POSITION INTERNAL PILOT HIGH PRESSURE SOLENOID VALVE

Features :

1. Bubble tight shut off.
2. Mounts in any position.
3. Vibration resistance upto 9g.
4. Suitable for high speed cycling.
5. Speed up to 600 cycles/ min.
6. Life >10 million cycles.
7. Manual override can be provided.

SPECIFICATIONS :



Model No.	Pressure Range
51435	4 - 70 bar
57407	4 - 70 bar





Type	5 Port, 2 Positions
Orifice Size	7, 10, 16, 20, 25 mm
Fluid / Ambient Temp	- 20 °C   to   80 °C
Operating Voltage :                      A.C :                      D.C :	24, 110, 220, 240 (50 Hz / 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption :               Size 1 coil :               Size 2 coil :	6 W 11 W
Body Material	Brass, SS 316
Guide Assembly	SS 304
Plunger, Insert	SS 430
Shadow Ring	None
Spring	SS 302
Seat, Seals	NBR, Viton
Fasteners	SS 304



Enclosure:

1.   General Purpose Flying lead.
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
      (in process) available
