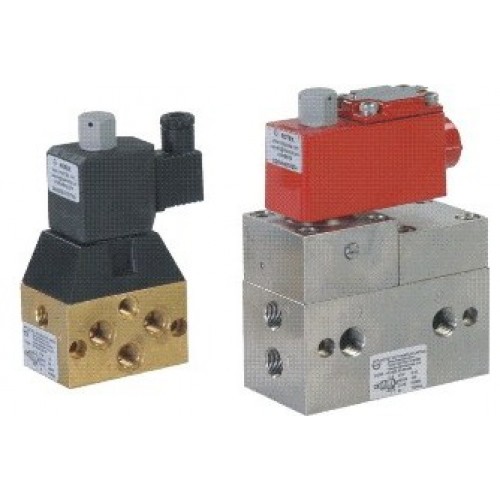

Rotex solenoid valve 5 PORT 2 POSITION INTERNAL PILOT OPERATED SINGLE SOLENOID POPPET VALVE

Features :

1. Bubble tight shut off.
2. Mounts in any position.
3. Vibration resistance upto 9g.
4. Suitable for high speed cycling.
5. Speed up to 1000 cycles/ min for 51400, Others 500 cycles/ min.
6. Life >10 million cycles.

SPECIFICATIONS :



Model No.	Pressure Range
51400	2 - 10 bar
51401	2 - 20 bar
51402	3 - 40 bar
51432	2 - 10 bar
51433	3 - 20 bar
51434	3 - 40 bar
52433	0 - 20 bar
52400	0 - 20 bar





Type	5 Port, 2 Positions
Orifice Size	6, 10, 16, 20, 25 mm
Fluid / Ambient Temp	- 20 °C   to   80 °C
Operating Voltage :                      A.C :                      D.C :	24, 110, 220, 240 (50 Hz / 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption :               Size 1 coil :               Size 2 coil :	6 W 11 W
Body Material	Anodized Aluminium, Brass, SS 316
Guide Assembly	SS 304
Plunger, Insert	SS 430
Shadow Ring	Copper / Silver / None
Spring / Circlip	SS 302 / Steel
Seat, Seals	NBR, Viton
Fasteners	SS 304



Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
      (in process) available.

Media :

Air, Inert Gases, Water, Oil

Application :

Operation of double acting cylinder / actuator
