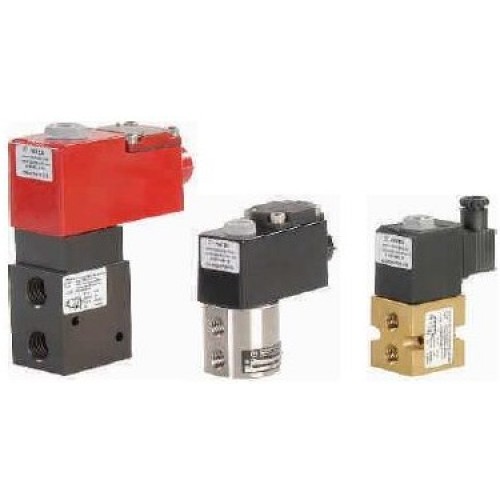

Rotex solenoid valve 3 DIRECT ACTING HIGH ORIFICE / UNIVERSAL SOLENOID VALVE

Features:

1. Bubble tight shut off.
2. Mounts in any position.
3. Suitable for vacuum up to 10^-6 torr.
4. Vibration resistance to 9g.
5. Suitable for high speed cycling.
6. Speed up to 800 cycles/ min.
7. Life >10 million cycles.
8. Manual override can be provided optionally.

SPECIFICATIONS :



Model No.	Pressure Range	Valve Condition
30308	0 - 10 bar	Universal
30309	0 - 10 bar	Universal
30329	0 - 20 bar	Universal
30333	0 - 10 bar	Universal
20206	0 - 10 bar	Universal
20106	0 - 10 bar	Universal
20205	0 - 10 bar	Universal
20105	0 - 10 bar	Universal





Type	3 Port, 2 Positions
Orifice Size	5 , 7, 10 mm
Fluid / Ambient Temp	- 20 °C   to   80 °C
Operating Voltage :                      A.C :                      D.C :	24, 110, 220, 240 (50 Hz / 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption :               Size 1 coil :               Size 2 coil :	6 W 11 W
Body Material	Anodized Aluminium, Brass, SS316
Guide Assembly	SS 304
Plunger, Insert	SS 430
Shadow Ring	Copper / Silver / None
Spring	SS 302
Seat, Seals	NBR, Viton, EPDM
Fasteners	SS 304



Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
      (in process) available.

Media :

Air, Inert Gases, Water, Vacuum Free Flowing Liquids,
Oil, Diesel, Kerosene, LPG.

Applications :

Single acting actuator/ Cylinder, control valve actuation.
Diverting / mixing of fluid, analyzer ESD.

* For Valve type 30308 operated with AC voltage select for in built full rectified solenoid with FR option.
