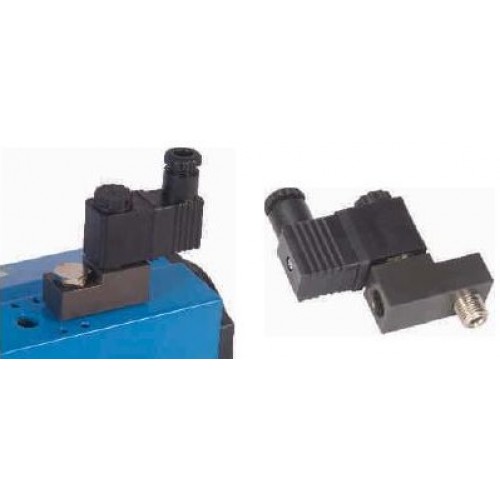

Rotex solenoid valve 3 PORT 2 POSITION DIRECT MOUNT DIRECT ACTING SOLENOID VALVE

Features :

Bubble tight shut off.
Mounts in any position.
Vibration resistance to 9g.
Speed up to 1000 cycles/ min.
Ease of installation.
Life >10 million cycles.

SPECIFICATIONS:

Model No.	Pressure Range	Valve Condition
304	0 - 10 bar	Normally Closed
305	0 - 10 bar	Normally Closed

Type	3 Port 2 Positions
Body Material	Anodized Aluminium, Brass, SS 316
Guide Assembly	Brass
Plunger, Insert	SS 430
Seat, Seals	NBR, Viton, EPDM
Shadow Ring	Copper / Silver / None
Spring	SS 302
Orifice Size	1.5, 2 mm
Fluid / Ambient Temp	- 20 °C to 80 °C
Operating Voltage: AC : DC :	24,110, 220, 240 (50 Hz/ 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption Size 1 coil Size 2 coil	6 W 11 W

Enclosure:

1.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
2.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
3.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
      process) available.

Media :

Air, Inert Gases

Applications :

Single acting actuator / Cylinder, control valve actuation.
Directly mounted on the Actuator, Angle seat valve operator.

* Valve supplied with gasket & Benjo fitting
* Recommended for indoor installation.

Certification :
