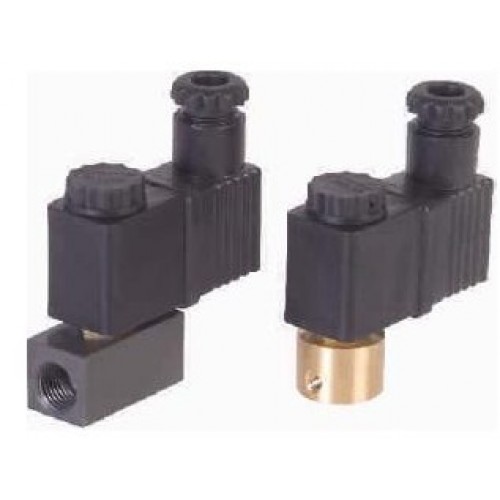

Rotex solenoid valve 3 PORT 2 POSITION DIRECT ACTING NORMALLY CLOSED GENERAL PURPOSE SOLENOID VALVE SIZE 0

Features :

1. Bubble tight shut off.
2. Mounts in any position.
3. Vibration resistance upto 5g.
4. Suitable for high speed cycling.
5. Speed up to 1000 cycles/ min.
6. Life >10 million cycles.

SPECIFICATIONS:



Model No.	Pressure Range	Valve Condition
301	0 - 10 bar	Normally Closed
302	0 - 10 bar	Normally Closed
303	0 - 10 bar	Normally Closed





Type	3 Port 2 Positions
Body Material	Aluminium/CF8M, Brass, SS 316
Guide Assembly	Brass
Plunger, Insert	SS 430
Seat, Seals	NBR, Viton, EPDM
Shadow Ring	Copper / Silver / None
Spring	SS 302
Orifice Size	1.5, 2, 2.5 mm
Fluid / Ambient Temp	- 20 °C   to  70 °C
Operating Voltage:                         AC :                            DC :	24,110, 220, 240 (50 Hz/ 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption  Size 1 coil  Size 2 coil	6 W 11 W



Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947

Media :

Air, Inert Gases

Applications :

Single acting actuator / Cylinder, control valve actuation.
