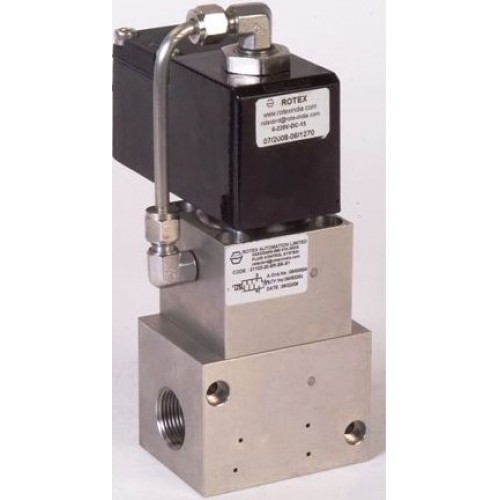

Rotex solenoid valve 2 PORT POPPET TYPE, NORMALLY CLOSED/OPEN HIGH PRESSURE (70 bar) SOLENOID VALVE

Features:



1. Bubble tight shut off.
2. Mounts in any position.
3. Vibration resistance upto 9g.
4. Suitable for high speed cycling.
5. Speed up to 300 cycles/ min.
6. Life > 5 million cycles.



SPECIFICATIONS:




Model No.	Pressure Range	Valve Condition
21104	3 - 70 bar	Normally Closed
21204	3 - 70 bar	Normally Open







Type	2 Port 2 Position
Body Material	Brass, SS 316
Guide Assembly	SS 304
Plunger, Insert	SS 430
Seat, Seals	PTFE, Viton
Fasteners	SS 304
Spring	SS 302
Orifice Size	12, 20, 25, 40, 50 mm
Fluid / Ambient Temp	- 20 °C   to  80 °C
Operating Voltage:                         AC :                            DC :	24, 110, 220, 240 (50 Hz/ 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption  Size 1 coil  Size 2 coil	6 W 11 W





Enclosure:

1.   Weather-Proof : Flying lead & Plug in type, Terminal Box as per IS 13947
2.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
3.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL

     (in process) available.

Media :


Air, Inert Gases, Water, Free Flowing Liquids, Oil, Diesel, Kerosene, LPG
