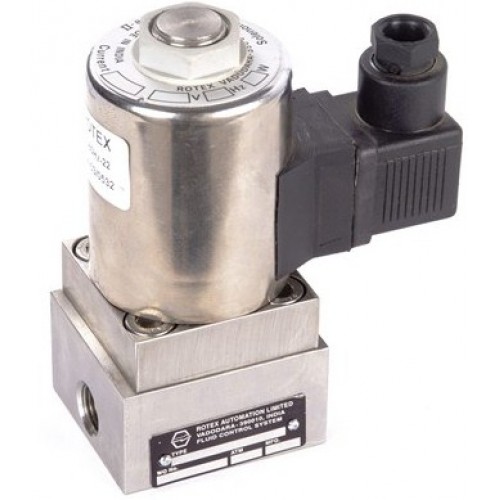

Rotex solenoid valve 2 PORT DIRECT ACTING HIGH PRESSURE SOLENOID VALVE

Features :

1. Bubble tight shut off.
2. Mounts in any position.
3. Vibration resistance upto 9g.
4. Suitable for high speed cycling.
5. Speed up to 300 cycles/ min.
6. Life > 2 million cycles.

SPECIFICATIONS :




Model No.	Pressure Range	Valve Condition
20116	0 - 400 bar	Normally Closed





Type	2 Port , 2 Positions
Orifice Size	1.2 , 1.4 mm
Fluid / Ambient Temp	- 20 °C   to  80 °C
Body Material  Guide Assembly	Brass, SS 316  SS 304
Spring  Plunger , Insert	SS 302  SS 430
Seat, Seals  Shadow Ring	PTFE, Viton  None
Fasteners	SS 304



Enclosure:

1.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
2.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
3.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
      (in process) available.

Media :

Air, Inert Gases, Water, Vacuum Free Flowing Liquids,
Oil, Diesel, Kerosene,LPG, CNG

Application :

Fuel Gas Cutoff.
