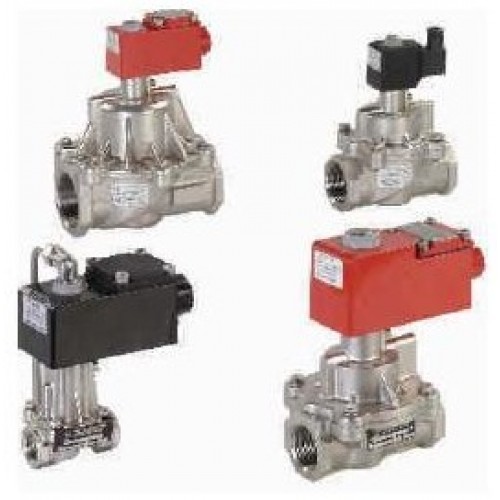

Rotex solenoid valve 2 PORT POPPET TYPE, INTERNAL/ EXTERNAL PILOT, NORMALLY CLOSED/OPEN SOLENOID VALVE

Features :

  1. Bubble tight shut off
  2. Vibration resistance to 9g
  3. Suitable for high speed cycling
  4. Speed up to 400 cycles/ min.
  5. Life > 10 million cycles.

SPECIFICATIONS:



 Model No.

 Pressure Range

 Valve Condition

 21101

 0.5 - 10 bar

 Normally Closed

 21102

     1 - 20 bar

 Normally Closed

 21103

     2 - 40 bar

 Normally Closed

 22101

     0 - 20 bar

Normally Closed

 21201

   0.5 - 10 bar

 Normally Open

 21202

    1 - 20 bar

 Normally Open

 21203

    2 - 40 bar

 Normally Open




 Type  2 Port, 2 Position
 Orifice Size  2, 12, 20, 25, 40, 50 mm
 Fluid / Ambient Temp  - 20 °C   to   80 °C

 Operating Voltage :
                     A.C :
                     D.C :


24, 110, 220, 240 (50 Hz / 60 Hz)
6, 12, 24, 48, 72, 110, 220

 Power Consumption :
              Size 1 coil :
              Size 2 coil :


6 W
11 W
 Body Material  Aluminium Cast / CF8M, Brass
 Guide Assembly  SS 304
 Plunger, Insert  SS 430
 Shadow Ring  Copper / Silver / None
 Spring  SS 302
 Seat, Seals  NBR, Viton, EPDM
 Fasteners  SS 304



Enclosure:

1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL
      (in process) available.

Media :

Air, Inert Gases, Water,Free Flowing Liquid, Oil, Diesel, Kerosene, LPG.

Application :

High ON/ OFF Cycles

* For Valve type 22101 External pilot pressure should be minimum
  2 bar or > Main pressure whichever is higher.
