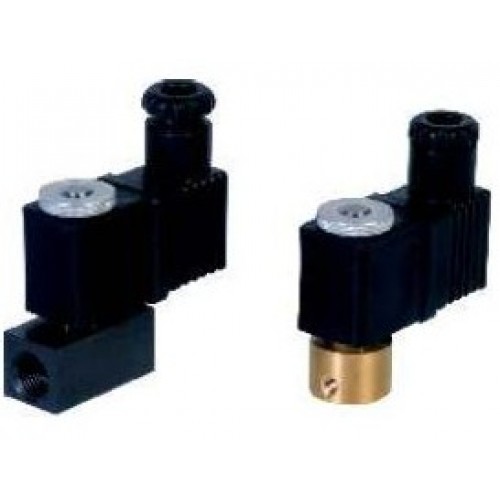

Rotex solenoid valve 2 PORT DIRECT ACTING NORMALLY CLOSED SOLENOID VALVE

Features :

1. Bubble tight shut off.
2. Vibration resistance upto 5g.
3. Mounts in any position.
4. Suitable for high speed cycling.
5. Speed upto 1000 cycles/ min.
6. Life >10 million cycles.

SPECIFICATIONS :



Model No.	Pressure Range	Valve Condition
201A, 202A, 211A	0 - 14 bar	Normally Closed
201B, 202B, 212B	0 - 8  bar	Normally Closed
201C, 202C, 211C	0 - 5  bar	Normally Closed





Type	2 Port 2 Position
Body Material	Anodized Aluminium, Brass, SS 316
Guide Assembly	Brass / SS 304
Plunger, Insert	SS 430
Seat, Seals	NBR , Viton, EPDM
Shadow Ring	Copper
Spring	SS 302
Orifice Size	1.5 , 2 , 2.5 mm
Fluid / Ambient Temp	- 20 °C   to  70 °C
Operating Voltage:                         AC :                            DC :	24, 110, 220 12, 24
Power Consumption                Size 0 coil :	6 W



Enclosure :

1. General Purpose Plug-in

MEDIA  :

Air, Inert Gases, Water, Vacuum, Free Flowing Liquid,
Oil, Diesel, Kerosene, LPG.

APPLICATION :

Drain and Dispensing
