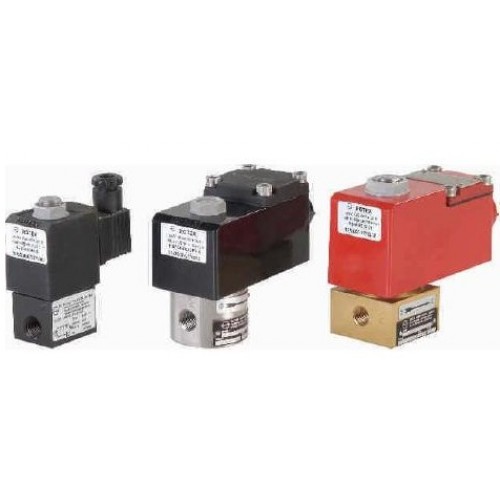

Rotex solenoid valve 2 PORT DIRECT ACTING NORMALLY CLOSED SOLENOID VALVE

Features :

Bubble tight shut off.
Suitable for vacuum upto 10 ^-6torr.
Vibration resistance upto 9g.
Mounts in any position.
Suitable for high speed cycling upto 1000 cycles/ min.
Life >10 million cycles.
Manual override can be provided optionally.

SPECIFICATIONS :

Model No	Pressure Range	Valve Condition
20101	0 - 150 bar	Normally Closed
20126	0 - 63 bar	Normally Closed
20123	0 - 1.5 bar	Normally Closed
20124	0 - 1.3 bar	Normally Closed
20126V1	0 - 225 bar	Normally Closed

Type	2 Port 2 Position
Body Material	Anodized Aluminium, Brass, SS 316
Guide Assembly	SS 304
Plunger, Insert	SS 430
Seat, Seals	NBR , Viton, EPDM, PTFE
Shadow Ring	Copper / Silver / None
Spring	SS 302
Orifice Size	0.8,1.2, 1.6, 1.8, 2.2, 2.5, 3, 3.5, 4, 5, 6, 10, 12mm
Fluid / Ambient Temp	- 20 °C to 80 °C
Operating Voltage: AC : DC :	24, 110, 220, 240 (50 Hz/ 60 Hz) 6, 12, 24, 48, 72, 110, 220
Power Consumption Size 1 coil Size 2 coil	6 W 11 W

Enclosure:
1.   General Purpose Flying lead / Plug-in
2.   Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947
3.   Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC
4.   Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL (in
      process) available.

MEDIA :

Air, Inert Gases, Water, Vacuum, Free Flowing Liquid,
Oil, Diesel,Kerosene, LPG, Furnace Oil.

APPLICATION :

Drain , Dispensing , Analyzer.
