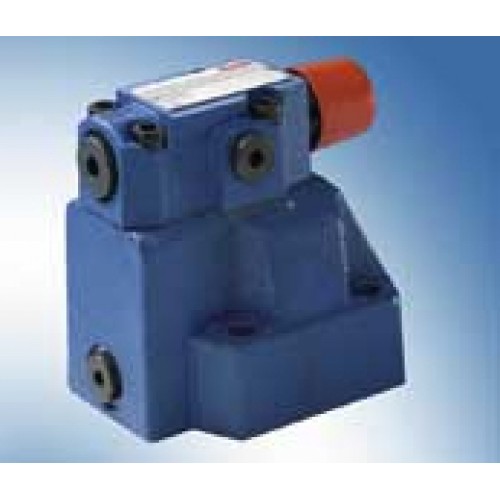

Bosch Standard Valves Hydraulics Pressure Control/Relief Valves Model DR Pressure Relief Valve
Hydraulic Application: Pressure reducing valves, pilot operated
Key features:
- Sizes 10 to 30
- For subplate mounting (“P”): Porting pattern to DIN 24340 form D and ISO 5781
- For block installation (“C”)
- For threaded connection (“G”)
- As cartridge valve (“K”)
- 4 pressure stages
- 4 optional adjustment types:
- Rotary knob
- Sleeve with hexagon and protective cap
- Lockable rotary knob with scale
- Rotary knob with scale
- Check valve, optional (with version “P” only)
RA 26 850 (Size 10, 3X)
RA 26 892 (Size 10-30, 5X)
Model DRK.V Pressure Relief Valve
Hydraulic Application: Pressure reducing valves in sandwich plate design, pilot operated (210 bar frame size)
Key features:
Sizes 6 and 10
Porting pattern to DIN 24340 form A and ISO 4401
Pressure reduction in channel A, B or P (with size 6, P channel only)
3 pressure stages: 50, 100, 210 bar
Pressure gauge connection
Download DRK.V Pressure Relief Valve Data Sheets
Pressure reducing valve, pilot operated, Type ZDRK 6 VP (Size 6)
Pressure reducing valve, pilot operated, ZDRK 10 V (Size 10)
RA 26 892 (Size 10-30, 5X)
Model DRK.V Pressure Relief Valve
Hydraulic Application: Pressure reducing valves in sandwich plate design, pilot operated (210 bar frame size)
Key features:
Sizes 6 and 10
Porting pattern to DIN 24340 form A and ISO 4401
Pressure reduction in channel A, B or P (with size 6, P channel only)
3 pressure stages: 50, 100, 210 bar
Pressure gauge connection
Download DRK.V Pressure Relief Valve Data Sheets
Pressure reducing valve, pilot operated, Type ZDRK 6 VP (Size 6)
Pressure reducing valve, pilot operated, ZDRK 10 V (Size 10)
