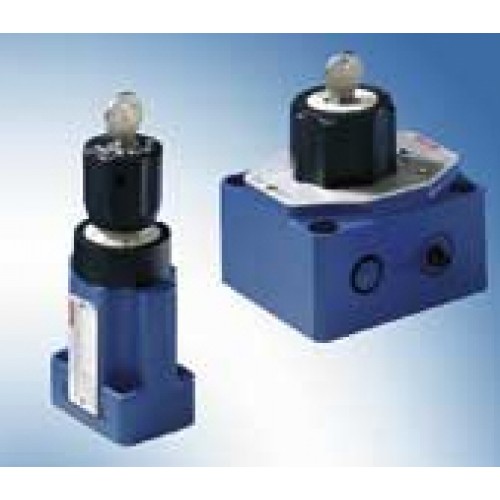

Bosch Standard Valves Hydraulic Flow Control Model 2FRM, 2FRH and 2FRW Flow Control Valves
Hydraulics Application: 2-way flow control valves
Key features:
- Sizes 6 to 16
- For subplate mounting:
- Size 6: Porting pattern to DIN 24340 form A and ISO 4401
- Sizes 10 and 16: Porting pattern to DIN 24340 form G and ISO 6263
- Manual actuation (type 2FRM)
- Hydraulic actuation (type 2FRH)
- Electrohydraulic actuation (type 2FRW)
- Flow control in both directions through rectifier sandwich plate, optional (see below, type Z4S)
- Stroke limiter of the rack-and-pinion drive that can be adjusted on both ends (types 2FRH and 2FRW)
- With actual value potentiometer for continuous monitoring of the throttle orifice position, optional (types 2FRH and 2FRW)
- With external closure of the pressure compensator, optional (size 6)
- Check valve, optional (size 6)
- Pressure compensator stroke limiter for reducing start-up jumps, optional (sizes 10 and 16)
RE 28 163 (Size 6)
RA 28 389 (Size 10)
2-way flow control valve 2FRM (Size 6)
2-way flow control valve 2FRM, 2FRH, 2FRW (Size 10 and 16)
